MSRP 80,60 €

Package price (4,04 m²): 51,91 €

Price 1 m²: 12,85 €

FREE

SAMPLE

incl. 19% VAT. plus. 79,95 € shipping costs for deliveries to DE

L

Customer service until 6pm¹ - personal & close
DIY Videos - DIY Instructions

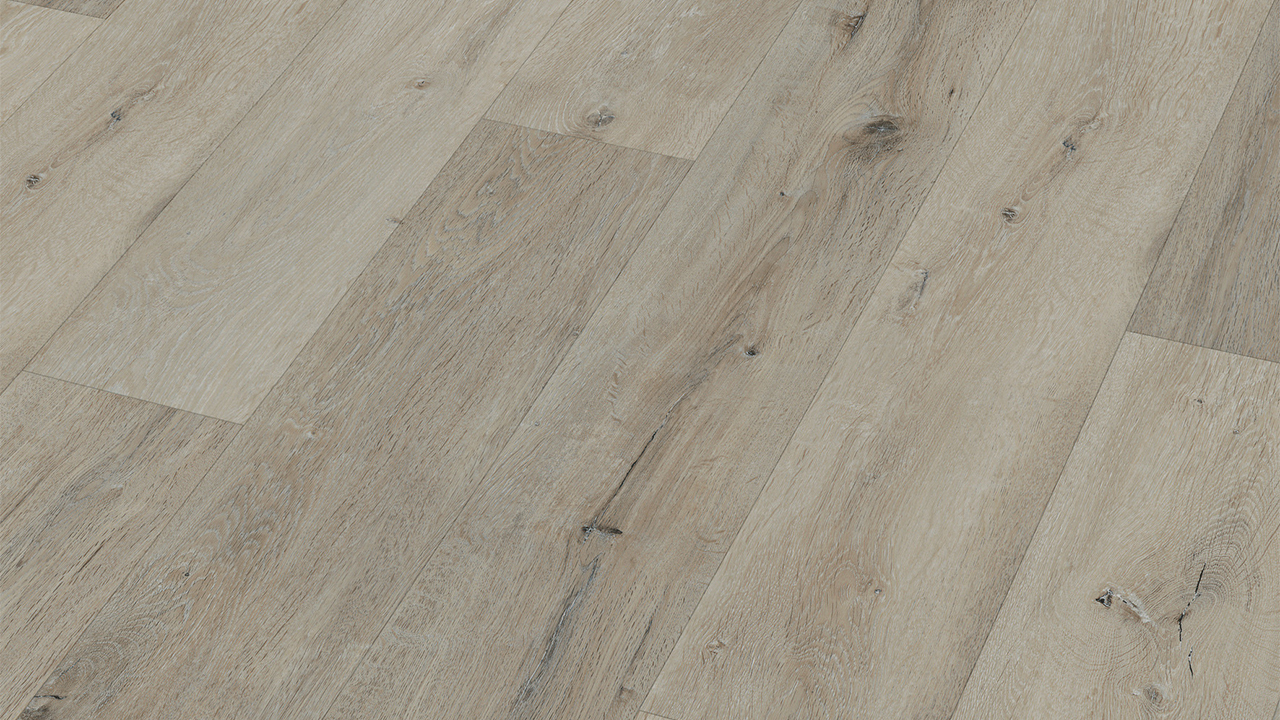

planeo adhesive vinyl - object oak grey white | waterproof (MSDB-7338)

0.55 mm wear layer - 33 trades (intensive) - full vinyl - micro bevel - wood look - wideplank - cream - super matt surface - non-slip - without harmful plasticisers. plasticiser

Item no.: MSDB-7338

UV-protective lacquering with multi-layer vinyl surface.
Extra-thin construction height of 2.5 mm.
Suitable for dry & damp living areas.
100% waterproof.
For commercial areas with heavy traffic.
Suitable for WW underfloor heating.
Contains no harmful plasticisers - 100% phthalate-free.

Processing variants:
In the BATH/WC: 3586207
For floating/self-adhesive installation, use the planeo Silent Stick: 10020218PW!

Offer request

Description

Technical data

DIY - Videos

Product description

UV-protective lacquering with multi-layer vinyl surface.
Extra-thin construction height of 2.5 mm.
Suitable for dry & damp living areas.
100% waterproof.
For commercial areas with heavy traffic.
Suitable for WW underfloor heating.
Contains no harmful plasticisers - 100% phthalate-free.

Processing variants:
In the BATH/WC: 3586207
For floating/self-adhesive installation, use the planeo Silent Stick: 10020218PW!

The extra-thin adhesive vinyl flooring in plank format embodies innovation, visual appeal and sustainability. The multi-layer structure contains:

a hard-wearing, wear-resistant vinyl surface
The waterproof vinyl backing layer

This sophisticated adhesive vinyl is free from harmful plasticisers and 100% phthalate-free

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: MSDB-7338

Contract and commercial use
Suitable for underfloor heating
Suitable for damp rooms
0.55mm wear layer
durable

Technical data

item no.	MSDB-7338
Structure	Full vinyl
Installation type	glue
installation pattern	Plank pattern (1-plank)
Wood type	Oak
Sorting (grain)	lively/rustic
Joint	Micro bevel
Underfloor heating	suitable
Slip resistance	R10
Wear class	33 Commercial (heavy)
Wear layer	0,55 mm
Manufacturer	planeo
Colour	cream
EAN	4062212203347
Piece per package	18
Collection	Object
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Wood effect
Special features	Suitable for humid rooms, Waterproof
Range of application	Residential, Commercial
Length in mm	1220
Width in mm	184
Thickness in mm	2.5
Shipping group	L
Package Content	4,04 m²

Print page

DIY step by step

Variant: DIY instruction wet bed bonding & Silent Stick

button

1. substrate preparation

The substrate should be permanently dry, load-bearing and even. Any unevenness should be sanded down and filled with a floor levelling compound. The surface to be laid can then be cleaned with a hoover.

CAUTION: Never install Silent Stick over a soft subfloor, e.g. carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room in which it is to be installed for at least 24 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after the installation.

Before laying, it is imperative that the official laying instructions, which are included in every package, are followed, otherwise any claim to warranty and guarantee will be invalidated!

Silent Stick (alternative to adhesive):

button

3. before laying

Now you can lay out the sheets in the opposite direction to the direction in which the top layer is laid. The foil side should always face upwards. Simply cut the Silent Stick to size with a cutter knife.

button

4. laying instructions

As soon as the strips have been laid butt to butt, the foil is removed area by area (approx. 2 planks wide) and the vinyl planks can be glued on and pressed down.

ATTENTION: There must always be a gap of approx. 5mm between the flooring and the wall and between the flooring and all fixed components.

button

5. finish

Afterwards, the laid surface is rolled with a roller and the skirtings can be fixed. Please note the drying times of the adhesive. If you have a large area, we recommend that you roll the laid planks after approx. 20-30 minutes so that no air bubbles form.

Classic wet-bed gluing:

button

3. before laying

Before applying the adhesive, open the packages and lay the elements from different packages in alternation to obtain an even decorative pattern in the area. Mark the reference points using a chalk line and cut the vinyl planks to size with a cutter knife. The planks can now be broken by simply folding them.

button

4. installation instructions

Apply the adhesive with a notched trowel and lay the vinyl planks in the wet bed, observing the flash-off times of the adhesive. The elements should be placed in the adhesive with little tension and with tight joints and pressed on. When doing so, observe the laying direction on the back of the vinyl planks.

ATTENTION: A gap of approx. 10mm must always be maintained between the flooring and the wall as well as to all fixed components.

button

5. finish

The laid surface is then rolled with a roller and the skirting boards can be fixed. Please note the drying time of the adhesive. The glued surface should be rolled after approx. 20-30 minutes so that no air bubbles form.
