planeo adhesive Vinyl - Wood&Rock Cristal | Authentic appearance (DGWR-0500)

0,30 mm Wear layer - 31 Commercial (light) - Full vinyl - Micro bevel - Tile effect - Tile format - grey - 100% recyclable - Easy to clean - Non-slip

Item no.: DGWR-0500

Improved adhesion to the substrate thanks to embossed backing.
Easy to clean and easy to maintain.
With textured embossed surface.
Authentic design thanks to realistic surface.
Is 100% recyclable.

Processing variants:
In the BATH/WC: 3586207
For floating/self-adhesive installation, use the planeo Silent Stick: 10020218PW!

Offer request

Description

Technical data

DIY - Videos

Product description

Improved adhesion to the substrate thanks to embossed backing.
Easy to clean and easy to maintain.
With textured embossed surface.
Authentic design thanks to realistic surface.
Is 100% recyclable.

Processing variants:
In the BATH/WC: 3586207
For floating/self-adhesive installation, use the planeo Silent Stick: 10020218PW!

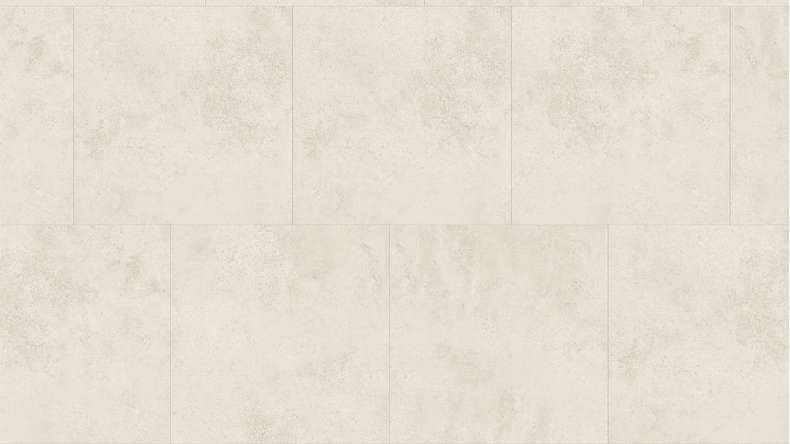

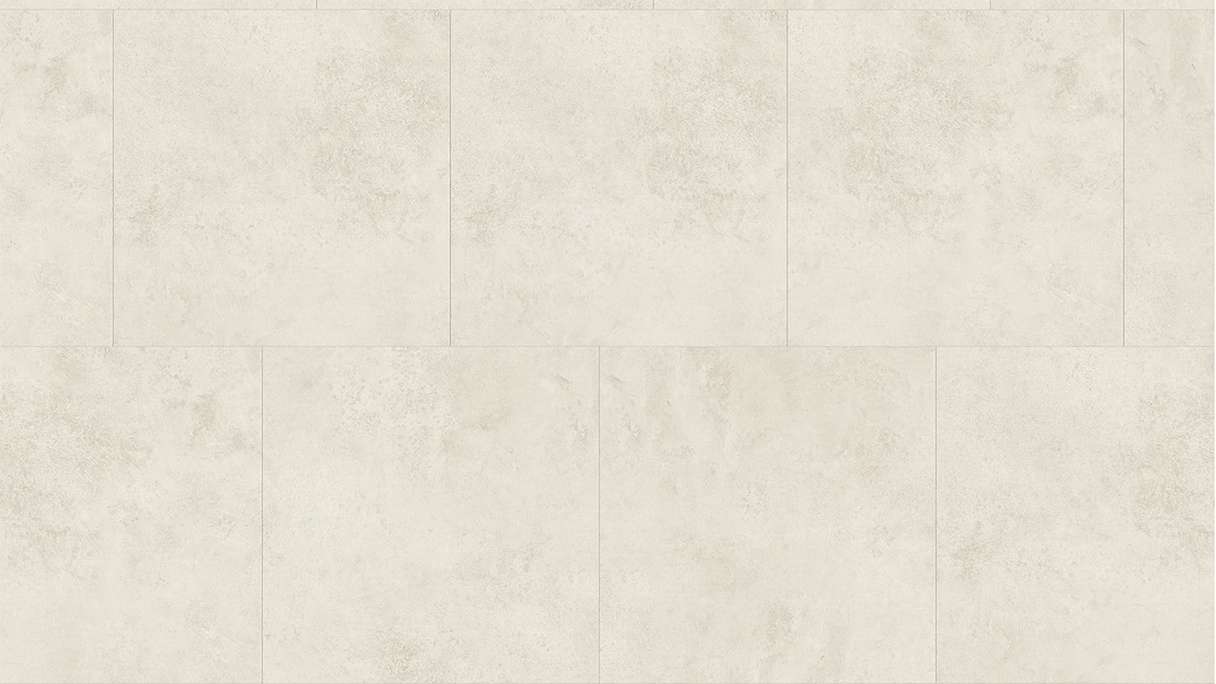

The Wood&Rock adhesive vinyl is authentic in design in tile format and has a tactile surface and slightly bevelled edges.

Environmentally friendly and recyclable:
The adhesive vinyl is 100% recyclable and already contains up to 35% recycled material, which conserves resources and makes it a sustainable choice for your home.

Natural feel & natural look
Wood&Rock adhesive vinyl has an embossed surface that can be felt. The vinyl floor is also sealed with PUR+ MATT, which gives it its authentic design.

Improved adhesion
The underside of the adhesive vinyl is embossed for better adhesion to the subfloor.

Particularly easy to clean
Thanks to the PUR+ coating, regular cleaning and maintenance is simplified. Daily damp mopping is all that is needed to remove loose dirt and dust.

Elastic comfort core
The vinyl floor is extremely barefoot-friendly and creates a high level of walking comfort thanks to the elastic centre layer.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: DGWR-0500

ultra realistic
non-slip
100% recyclable
easy to clean

Technical data

item no.	DGWR-0500
Structure	Full vinyl
Installation type	glue
installation pattern	Tile format
Sorting (grain)	calm/elegant
Joint	Micro bevel
Underfloor heating	suitable
Slip resistance	R10
Wear class	31 Commercial (light)
Wear layer	0,30 mm
Weight	15.3594 kg / Packing
Manufacturer	planeo
Colour	grey
EAN	4062212202722
Piece per package	13
Collection	Wood&Rock
suitable for	Bedroom & living room, Hallway & Corridor
Look	Tile effect
Style	Modern
Special features	Environmentally friendly, Suitable for humid rooms, Non-slip, Waterproof
Range of application	Residential, Commercial
Length in mm	610
Width in mm	610
Thickness in mm	2
Shipping group	M
Package Content	4,83 m²

Print page

DIY step by step

Variant: DIY instruction wet bed bonding & Silent Stick

button

1. substrate preparation

The substrate should be permanently dry, load-bearing and even. Any unevenness should be sanded down and filled with a floor levelling compound. The surface to be laid can then be cleaned with a hoover.

CAUTION: Never install Silent Stick over a soft subfloor, e.g. carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room in which it is to be installed for at least 24 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after the installation.

Before laying, it is imperative that the official laying instructions, which are included in every package, are followed, otherwise any claim to warranty and guarantee will be invalidated!

Silent Stick (alternative to adhesive):

button

3. before laying

Now you can lay out the sheets in the opposite direction to the direction in which the top layer is laid. The foil side should always face upwards. Simply cut the Silent Stick to size with a cutter knife.

button

4. laying instructions

As soon as the strips have been laid butt to butt, the foil is removed area by area (approx. 2 planks wide) and the vinyl planks can be glued on and pressed down.

ATTENTION: There must always be a gap of approx. 5mm between the flooring and the wall and between the flooring and all fixed components.

button

5. finish

Afterwards, the laid surface is rolled with a roller and the skirtings can be fixed. Please note the drying times of the adhesive. If you have a large area, we recommend that you roll the laid planks after approx. 20-30 minutes so that no air bubbles form.

Classic wet-bed gluing:

button

3. before laying

Before applying the adhesive, open the packages and lay the elements from different packages in alternation to obtain an even decorative pattern in the area. Mark the reference points using a chalk line and cut the vinyl planks to size with a cutter knife. The planks can now be broken by simply folding them.

button

4. installation instructions

Apply the adhesive with a notched trowel and lay the vinyl planks in the wet bed, observing the flash-off times of the adhesive. The elements should be placed in the adhesive with little tension and with tight joints and pressed on. When doing so, observe the laying direction on the back of the vinyl planks.

ATTENTION: A gap of approx. 10mm must always be maintained between the flooring and the wall as well as to all fixed components.

button

5. finish

The laid surface is then rolled with a roller and the skirting boards can be fixed. Please note the drying time of the adhesive. The glued surface should be rolled after approx. 20-30 minutes so that no air bubbles form.
