MSRP 175,18 €

Package price (3,34 m²): 89,85 €

Price 1 m²: 26,90 €

FREE

SAMPLE

incl. 19% VAT. plus. 79,95 € shipping costs for deliveries to DE

L

Customer service until 6pm¹ - personal & close
DIY Videos - DIY Instructions

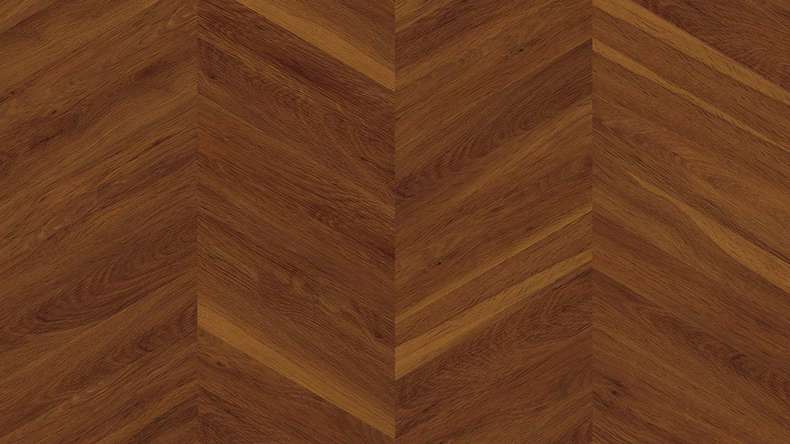

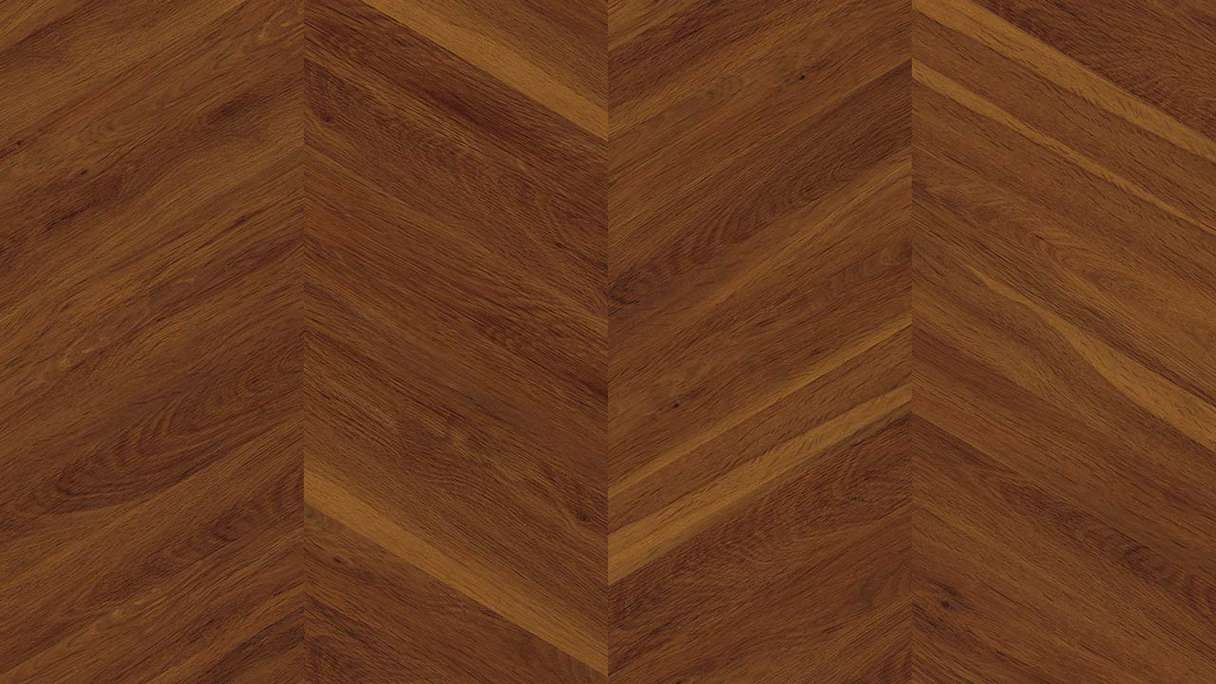

Project Floors adhesive Vinyl - Chevron PW 3535/FP (PW3535FP)

0,55 mm Wear layer - 42 Industrial (moderate) - Full vinyl - Beveled edge (4 sides) - Wood effect - 2-plank - brown

Item no.: PW3535FP

Resilient and hygienic.
Suitable for contract and residential use.
Authentic and high-quality decor.
Suitable for WW underfloor heating.

Processing variants:
Wet bed adhesive: 643-111405 or
In BATHROOM/WC: 3586207
For floating installation the planeo Silent Stick: 10020218PW!

Offer request

Description

Technical data

DIY - Videos

Product description

Resilient and hygienic.
Suitable for contract and residential use.
Authentic and high-quality decor.
Suitable for WW underfloor heating.

Processing variants:
Wet bed adhesive: 643-111405 or
In BATHROOM/WC: 3586207
For floating installation the planeo Silent Stick: 10020218PW!

The high-quality design floors from Project Floors from the Chevron Collection offer you a decor in the noble "French parquet" style

Noble installation method
High walking comfort
Hygienic and easy to clean
ideal for renovation work

The Indoor Air Comfort Gold seal of quality guarantees that production has been tested for emissions and that the indoor air is healthy for living. No harmful substances are contained. Project Floors uses the same plastics that are used in the manufacture of products close to people, such as food packaging.

PROJECT FLOORS

The name PROJECT FLOORS has been associated with high-quality LVT floor coverings since 1999. The abbreviation "LVT" stands for luxury vinyl tiles and indicates that these are PVC-based floorings. The PVC designs from PROJECT FLOORS are available in ceramic concrete, sand or plain colour finishes that replicate the look of natural materials. They combine the authentic look of the original materials with the robustness and ease of care of synthetic floor coverings.

item no.: PW3535FP

hygienic
easy to clean
authentic
Indoor Air Comfort Gold
waterproof

Technical data

item no.	PW3535FP
Structure	Full vinyl
Installation type	glue
installation pattern	2-plank
Sorting (grain)	natural/classic
Joint	Beveled edge (4 sides)
Underfloor heating	suitable
Slip resistance	R10
Wear class	42 Industrial (moderate)
Wear layer	0,55 mm
Weight	12.7254 kg / Packing
Manufacturer	Project Floors
Colour	brown
EAN	4250664360699
Piece per package	72
Collection	Chevron
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Wood effect
Style	Classic
Special features	Environmentally friendly, Suitable for humid rooms, Waterproof
Range of application	Commercial, Industrial
Length in mm	457
Width in mm	102
Thickness in mm	2.5
Shipping group	L
Package Content	3,34 m²

Downloads

Print page

DIY step by step

Variant: DIY instruction wet bed bonding & Silent Stick

button

1. substrate preparation

The substrate should be permanently dry, load-bearing and even. Any unevenness should be sanded down and filled with a floor levelling compound. The surface to be laid can then be cleaned with a hoover.

CAUTION: Never install Silent Stick over a soft subfloor, e.g. carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room in which it is to be installed for at least 24 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after the installation.

Before laying, it is imperative that the official laying instructions, which are included in every package, are followed, otherwise any claim to warranty and guarantee will be invalidated!

Silent Stick (alternative to adhesive):

button

3. before laying

Now you can lay out the sheets in the opposite direction to the direction in which the top layer is laid. The foil side should always face upwards. Simply cut the Silent Stick to size with a cutter knife.

button

4. laying instructions

As soon as the strips have been laid butt to butt, the foil is removed area by area (approx. 2 planks wide) and the vinyl planks can be glued on and pressed down.

ATTENTION: There must always be a gap of approx. 5mm between the flooring and the wall and between the flooring and all fixed components.

button

5. finish

Afterwards, the laid surface is rolled with a roller and the skirtings can be fixed. Please note the drying times of the adhesive. If you have a large area, we recommend that you roll the laid planks after approx. 20-30 minutes so that no air bubbles form.

Classic wet-bed gluing:

button

3. before laying

Before applying the adhesive, open the packages and lay the elements from different packages in alternation to obtain an even decorative pattern in the area. Mark the reference points using a chalk line and cut the vinyl planks to size with a cutter knife. The planks can now be broken by simply folding them.

button

4. installation instructions

Apply the adhesive with a notched trowel and lay the vinyl planks in the wet bed, observing the flash-off times of the adhesive. The elements should be placed in the adhesive with little tension and with tight joints and pressed on. When doing so, observe the laying direction on the back of the vinyl planks.

ATTENTION: A gap of approx. 10mm must always be maintained between the flooring and the wall as well as to all fixed components.

button

5. finish

The laid surface is then rolled with a roller and the skirting boards can be fixed. Please note the drying time of the adhesive. The glued surface should be rolled after approx. 20-30 minutes so that no air bubbles form.
