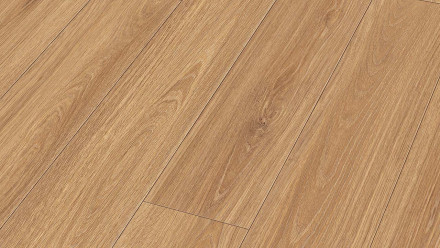

MEISTER click Vinyl - MeisterDesign DL 500S Princess Oak natural (400003-2052220-06897)

0,55 mm Wear layer - 31 Commercial (light) - Multilayer - Micro bevel - Wood effect - Plank pattern - brown

Item no.: 5974006897

Lower swelling and shrinkage behaviour.
Suitable for private and commercial use.
Phthalate-free - no harmful plasticisers.

Offer request

Description

Technical data

DIY - Videos

Product description

Lower swelling and shrinkage behaviour.
Suitable for private and commercial use.
Phthalate-free - no harmful plasticisers.

The design floor as an attractive plank combines comfort, appearance and sustainability. The innovative, multi-layer construction contains:

A hard-wearing, PVC-free PUR surface
A special AquaSafe board
optimum dimensional stability

Meister stands up for its good name and gives a guarantee of

25 years for residential

and 5 years in the commercial sector

MEISTER

MEISTER is the quality brand for flooring from MeisterWerke Schulte GmbH, a family-owned company. The innovative sales brand based in Ruthen-Meiste is available exclusively from specialist retailers. The wide range of floors, panels and accessories for the wood and building materials traded by MEISTER enjoys great popularity throughout Europe.

item no.: 5974006897

Easy on the joints
all-round micro joint
no harmful softeners
PVC-free
easy to install MaxiclicPlus
Blue Angel

Technical data

item no.	5974006897
Structure	Multilayer
Installation type	click
installation pattern	Plank pattern (1-plank)
Wood type	Oak
Sorting (grain)	natural/classic
Joint	Micro bevel
Underfloor heating	suitable
Slip resistance	R9
Wear class	31 Commercial (light)
Wear layer	0,55 mm
Weight	7.6604 kg / Packing
Manufacturer	MEISTER
Colour	brown
EAN	4064611117690
Piece per package	6
Collection	MeisterDesign
Collection variant	DL 500S
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Wood effect
Style	Classic
Special features	Integrated impact sound
Range of application	Residential, Commercial
Length in mm	2052
Width in mm	220
Thickness in mm	8
Warranty	25 Jahre Privat, 5 Jahre Gewerbe
Percentage discount	5
Shipping group	L
Click variant	UniClic
Package Content	2,71 m²

Print page

DIY step by step

Variant: DIY Instruction

button

1. substrate preparation

Check the subfloor. Any unevenness that exceeds 3 mm over a length of 1 m should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.

CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.

button

3. before laying

Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.

button

4. installation instructions

Tips for the UniClic system: To achieve as uniform a floor appearance as possible, it is recommended to install panels from different packages mixed together. You should start laying in a corner (left) and starting from the wall. With the tongue side facing the wall, lay the first board. Angle the end of the second board into the first. In the second row, the plank is placed at an angle to the end face of the row already laid and folded down. As the board is folded down, the long side of the board will click into the existing board at an angle. With a little pressure, the click joints now snap into place. The transverse joints (front side) should be offset by at least 30 cm from row to row ("wild bond", half a plank length for tile formats). You can use a tapping block and a light tap on the long side of the plank to help it along. To cut a plank, now take measurements and mark the plank. Then take an angle and tear the plank with a multi-purpose knife/cutter and break it off.

button

5. finishing the last row

Place the spacers on walls, door frames, fixed wall cabinets, kitchen units, etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.

button

6. attach skirting boards

Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
