Package price (1,95 m²): 56,35 €

Price 1 m²: 28,90 €

FREE

SAMPLE

incl. 19% VAT. plus. 79,95 € shipping costs for deliveries to DE

L

Customer service until 6pm¹ - personal & close
DIY Videos - DIY Instructions

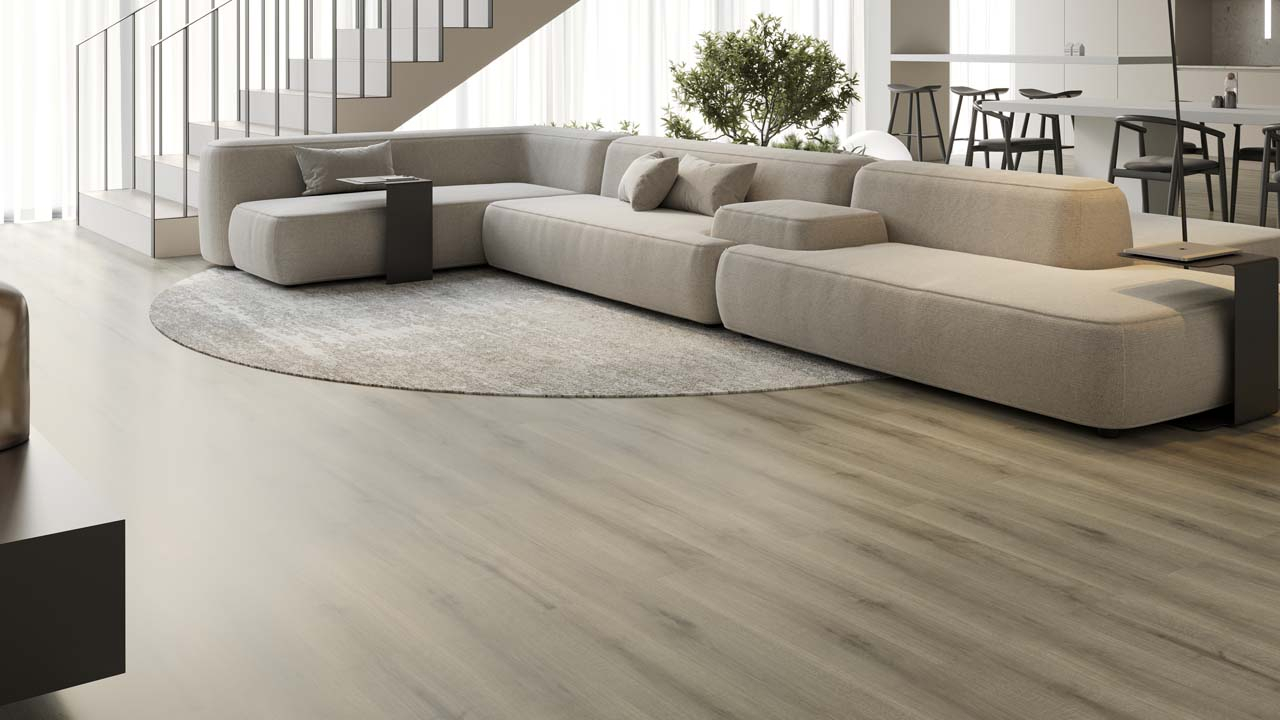

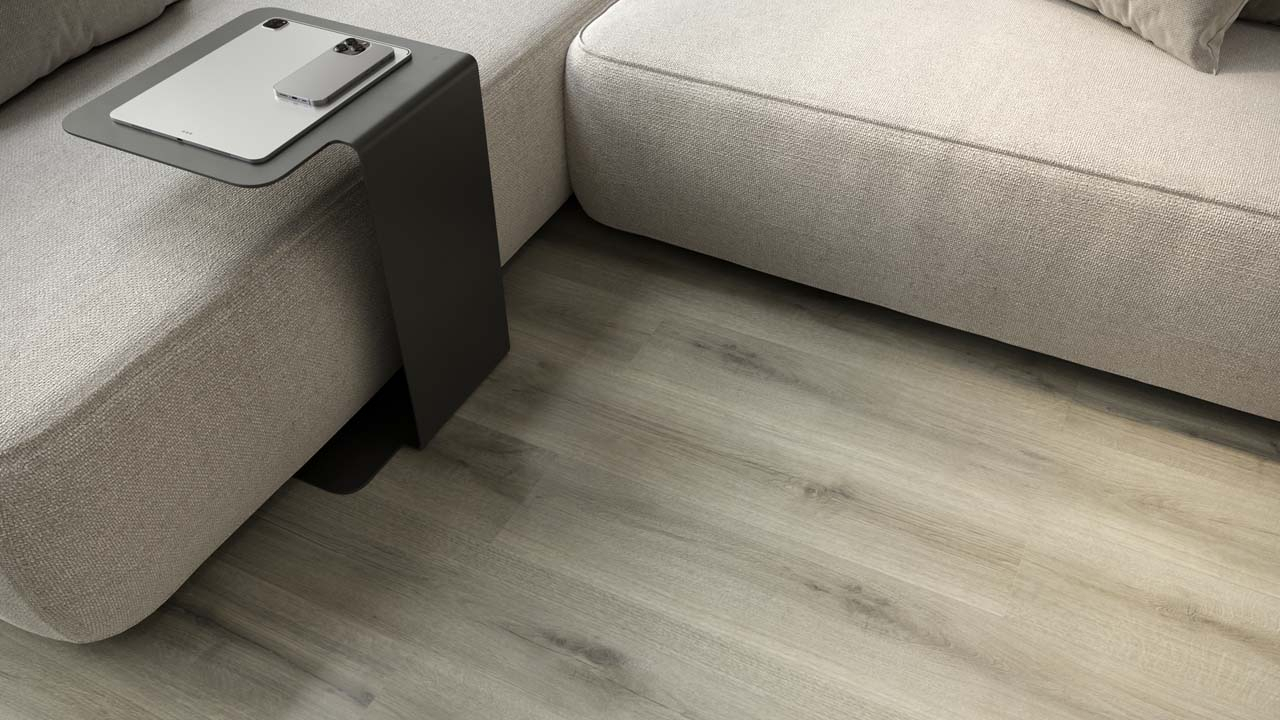

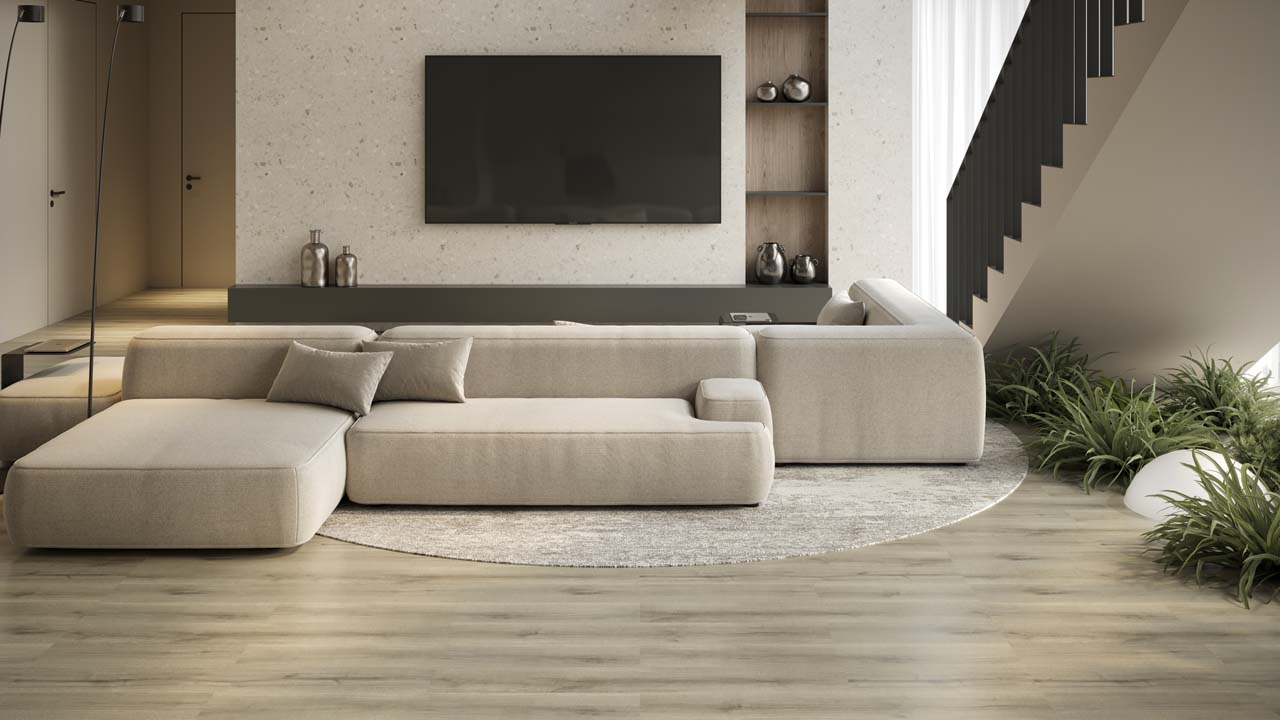

planeo Click vinyl - Rigid Dusty Trail (P25206D)

0,20 mm Wear layer - 22 Residential (moderate) - Rigid SPC - No bevel - Wood effect - Plank pattern - grey

Item no.: P25206D

Simple processing.
Design flooring for the home.
PU-sealed surface.
Resistant.
Suitable for WW underfloor heating.

Offer request

Description

Technical data

DIY - Videos

Product description

Simple processing.
Design flooring for the home.
PU-sealed surface.
Resistant.
Suitable for WW underfloor heating.

Rigid Vinyl is a new development of the classic vinyl floor/design floor and is suitable for many applications. The main differences to classic vinyl flooring are the addition of stone powder in the base material. base material. They ensure very robust and rigid properties. This is why the is also known as rigid board. The rigid board improves several properties of the vinyl floor.

Low expansion and shrinkage behaviour
SPC carrier (Stone-Powder-Composite)
Resistant to deformation & dimensionally stable
enables large-area installation without expansion joints
can be laid on old floor coverings such as tiles, linoleum or old floorboards old floorboards. Joints do not "push through"!

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: P25206D

PU sealer
easy to apply
easy to renovate

Technical data

item no.	P25206D
Structure	Rigid SPC
Installation type	click
installation pattern	Plank pattern (1-plank)
Sorting (grain)	natural/classic
Joint	No bevel
Underfloor heating	suitable
Slip resistance	R10
Wear class	22 Residential (moderate)
Wear layer	0,20 mm
Click system	Unilin
Manufacturer	planeo
Colour	grey
EAN	4062212195390
Piece per package	9
Collection	Rigid
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Wood effect
Style	Classic
Range of application	Residential
Length in mm	1220
Width in mm	178
Thickness in mm	3.5
Percentage discount	5
Shipping group	L
Click variant	UniClic
Package Content	1,95 m²

Downloads

Print page

DIY step by step

Variant: DIY Instruction

button

1. substrate preparation

Check the subfloor. Any unevenness that exceeds 3 mm over a length of 1 m should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.

CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.

button

3. before laying

Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.

button

4. installation instructions

Tips for the UniClic system: To achieve as uniform a floor appearance as possible, it is recommended to install panels from different packages mixed together. You should start laying in a corner (left) and starting from the wall. With the tongue side facing the wall, lay the first board. Angle the end of the second board into the first. In the second row, the plank is placed at an angle to the end face of the row already laid and folded down. As the board is folded down, the long side of the board will click into the existing board at an angle. With a little pressure, the click joints now snap into place. The transverse joints (front side) should be offset by at least 30 cm from row to row ("wild bond", half a plank length for tile formats). You can use a tapping block and a light tap on the long side of the plank to help it along. To cut a plank, now take measurements and mark the plank. Then take an angle and tear the plank with a multi-purpose knife/cutter and break it off.

button

5. finishing the last row

Place the spacers on walls, door frames, fixed wall cabinets, kitchen units, etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.

button

6. attach skirting boards

Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
