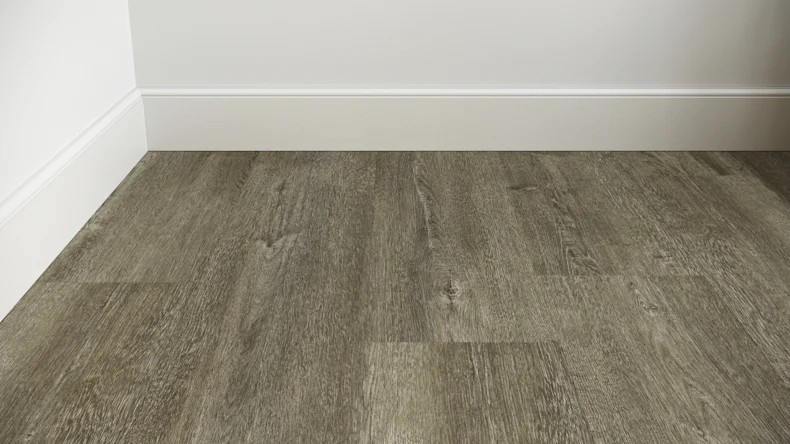

planeo Rigid click vinyl - Calgary Oak | Impact sound insulation integrated (PFQ-5006)

0.30 mm wear layer - 31 trades (light) - Rigid SPC - Uniclic 2G - micro bevel - wood look - wideplank - brown - waterproof

Item no.: PFQ-5006

Rigid SPC - mineral high density core board.
Absolutely waterproof and suitable for kitchens and bathrooms.
Large areas can be laid without expansion joints.
Low swelling and shrinkage behaviour.
Suitable for private and commercial use.
Phthalate-free - no harmful plasticisers.

Request alternative

Description

Technical data

DIY - Videos

Product description

Rigid SPC - mineral high density core board.
Absolutely waterproof and suitable for kitchens and bathrooms.
Large areas can be laid without expansion joints.
Low swelling and shrinkage behaviour.
Suitable for private and commercial use.
Phthalate-free - no harmful plasticisers.

Rigid Vinyl is a new development of classic vinyl flooring for many applications. The ultra-modern Rigid Board improves several properties of vinyl flooring.

SPC carrier board (Stone-Powder-Composite)
Temperature resistant
Robust

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: PFQ-5006

Technical data

item no.	PFQ-5006
Manufacturer	planeo
Length in mm	1200
Width in mm	200
Thickness in mm	5
Wear layer	0,30 mm
Wear class	31 Commercial (light)
Joint	Micro bevel
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
installation pattern	Plank pattern (1-plank)
Installation type	click
Look	Wood effect
Sorting (grain)	lively/rustic
Underfloor heating	suitable
Special features	Integrated impact sound
EAN	4062212201794
Piece per package	8
Structure	Rigid SPC
Click system	2G
Slip resistance	R9
Shipping group	M
Weight	15,21 kg / Packing
Colour	brown
Style	Modern
Range of application	Residential, Commercial
Click variant	UniClic
Package Content	1,92 m²

Downloads

Print page

DIY step by step

Variant: DIY instructions

button

1. Substrate preparation

Check for dust and level out any unevenness at the start. A screed scraper can easily remove minor bumps. You can use a spirit level to check whether the surface is smooth enough on a regular basis. Using a vacuum cleaner, clean the entire surface.

button

2. Acclimatization

For at least 48 hours prior to installation, the vinyl planks should be stored horizontally in the packs in the room where they will be installed. This allows the material to acclimate to room temperature and reduces the amount of "work" required after laying.

button

3. Laying instructions

Before laying of the planks, the official laying instructions included in each package must be followed; otherwise, any warranty and guarantee claims will be invalid!

It is best to mix and lay floorboards from different packs to achieve the most uniform floor possible. Using the 5 mm tapping block and a hammer, join the next complete plank to the front of plank 1. Lay the remaining planks in this row in the same manner across the entire width of the room. When working with a hammer and tapping block is not possible due to a lack of space, you can use a pull bar to click the front connection together. To cut a plank, first measure and mark it. Then, using a square, score the plank with a utility knife, cut through, and snap off the back impact sound insulation. You can easily create and lay the floor sections in the next row.

ATTENTION: When laying, keep the edge distances of 5mm.

button

4. Attach baseboards

Finally, attach the baseboards with a mounting adhesive.
