MSRP 80,08 €

Package price (1,76 m²): 61,42 €

Price 1 m²: 34,90 €

FREE

SAMPLE

incl. 19% VAT. plus. 79,95 € shipping costs for deliveries to DE

L

Customer service until 6pm¹ - personal & close
DIY Videos - DIY Instructions

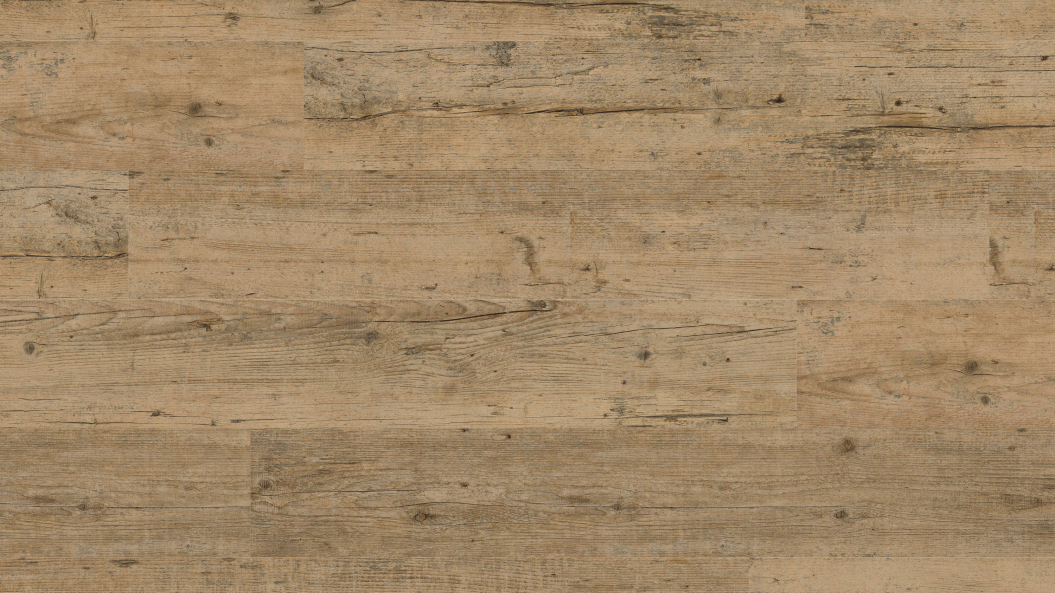

Project Floors click Vinyl - Click Collection PW4140/CL30 (PW4140CL30)

0,30 mm Wear layer - 31 Commercial (light) - Full vinyl - Beveled edge (4 sides) - Wood effect - Plank pattern - brown

Item no.: PW4140CL30

Quick and easy to install.
Easy to clean and hygienic.
High-quality and authentic design.
Suitable for WW underfloor heating.

Offer request

Description

Technical data

DIY - Videos

Product description

Quick and easy to install.
Easy to clean and hygienic.
High-quality and authentic design.
Suitable for WW underfloor heating.

Project Floors Click Collection presents itself in unique wood and stone decors which are available in two different wear layers of 0.55 and 0.3 mm.

wear layer in 0.55 and 0.3 mm
environmentally friendly and non-slip
patented UNIFIT® locking technology

the high-quality click connection enables quick, easy and adhesive-free installation The Indoor Air Comfort Gold seal of quality guarantees that the production process has been tested for emissions and that the indoor air is healthy. No harmful substances are contained. Project Floors uses pollutant-free plastics that are also used in the manufacture of products such as food packaging.

PROJECT FLOORS

The name PROJECT FLOORS has been associated with high-quality LVT floor coverings since 1999. The abbreviation "LVT" stands for luxury vinyl tiles and indicates that these are PVC-based floorings. The PVC designs from PROJECT FLOORS are available in ceramic concrete, sand or plain colour finishes that replicate the look of natural materials. They combine the authentic look of the original materials with the robustness and ease of care of synthetic floor coverings.

item no.: PW4140CL30

authentic design
easy to clean
Underfloor heating
Indoor Air Comfort Gold

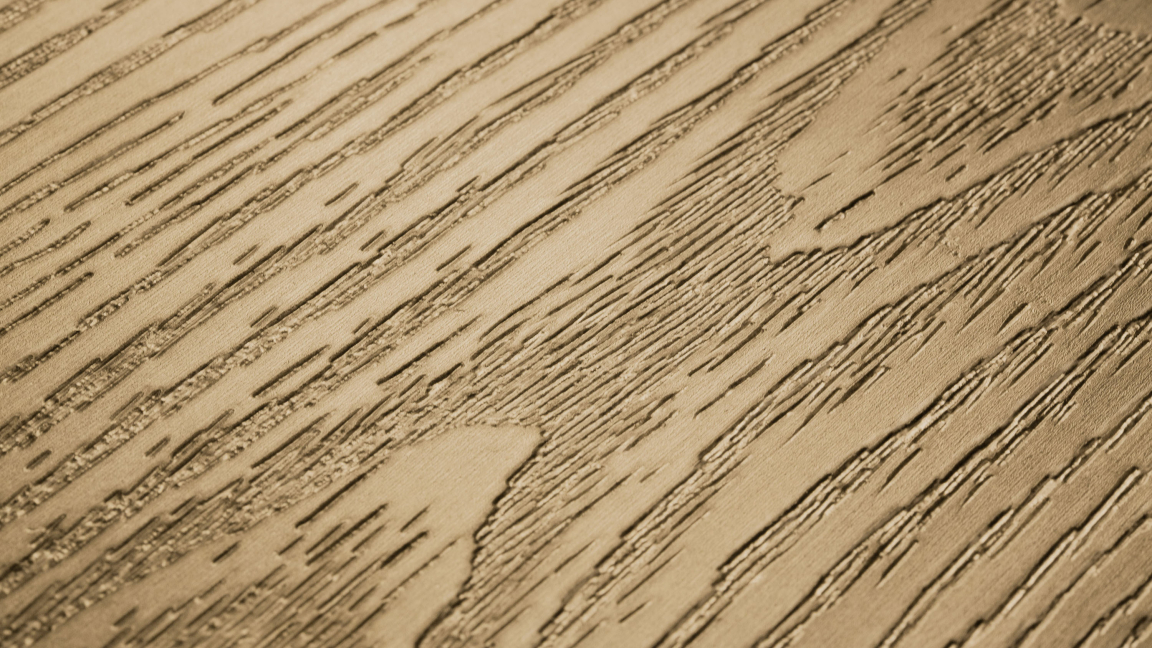

Synchronous embossing

Technical data

item no.	PW4140CL30
Structure	Full vinyl
Installation type	click
installation pattern	Plank pattern (1-plank)
Sorting (grain)	natural/classic
Joint	Beveled edge (4 sides)
Underfloor heating	suitable
Slip resistance	R10
Wear class	31 Commercial (light)
Wear layer	0,30 mm
Weight	17.6000 kg / Packing
Manufacturer	Project Floors
Colour	brown
EAN	4250664355497
Piece per package	8
Collection	Click Collection
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Wood effect
Style	Classic
Special features	Suitable for humid rooms, Non-slip, Waterproof, Synchronous embossing
Range of application	Residential, Commercial
Length in mm	1220
Width in mm	180
Thickness in mm	5
Doorstop	door left
Hinge	2-teilig (Standard)
Percentage discount	5
Shipping group	L
Click variant	DropDown
Package Content	1,76 m²

Downloads

Print page

DIY step by step

Variant: DIY-Instruction

button

1. substrate preparation

Check the subfloor. Any unevenness exceeding 3mm should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.

CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.

button

3. before laying

Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.

button

4. laying instructions

Tips on the drop-down click system: In order to achieve the most uniform appearance of the floor, it is advisable to install panels from different packages mixed together. You should start laying in one corner (left) and starting from the wall. Lay the first plank with the tongue side facing the wall. Then snap the second plank into the first from the top on the face side. In the second row, place the plank at an angle to the long side of the row already laid and fold it down. With the help of a rubber mallet, you can lock the face of the following planks by gently hitting them. To cut a plank, now take measurements and mark the plank. Then take an angle and tear and break the plank with a multi-purpose knife/cutter.

button

5. finishing the last row

The last plank of a row should be the same length as the first plank. Place the spacers against walls, door frames, fixed wall cabinets, kitchen units etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.

button

6. attach skirting boards

Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
