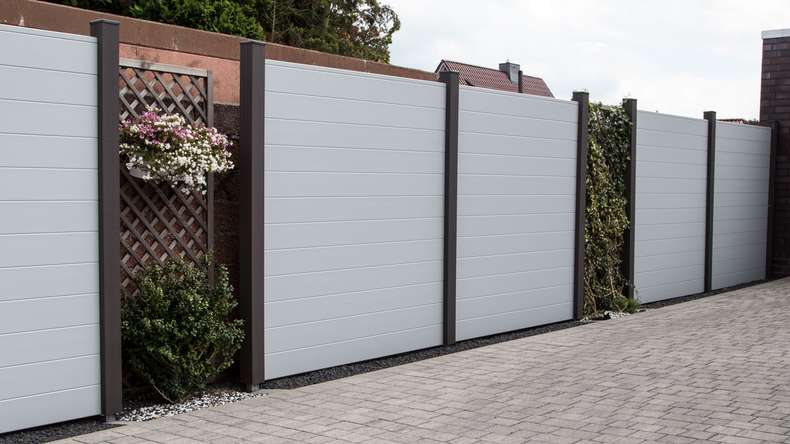

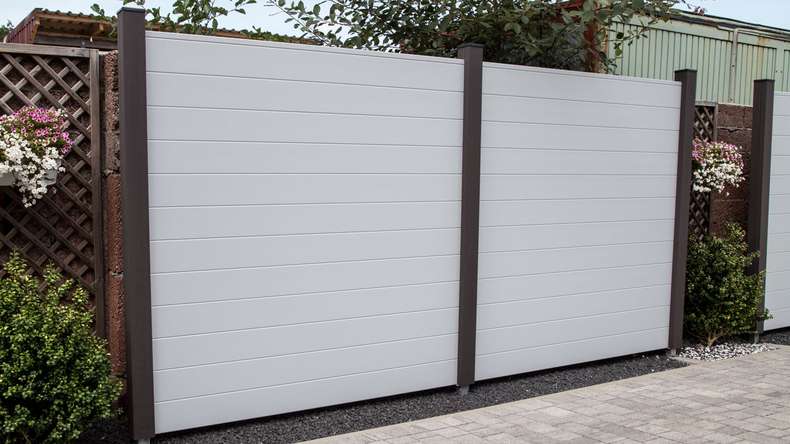

planeo Alumino - Garden Fence Square Silver Grey DB 701

High quality coated aluminium garden fence kit

Item no.: L-pz321800920

High-quality aluminium with powder coating.
Durable and robust surface.
Easy to clean and maintain.
Weatherproof and hard-wearing.
Made in Germany.

Posts are not included in the scope of delivery

Offer request

Description

Technical data

DIY - Videos

Product description

High-quality aluminium with powder coating.
Durable and robust surface.
Easy to clean and maintain.
Weatherproof and hard-wearing.
Made in Germany.

Posts are not included in the scope of delivery

With the planeo Alumino privacy fence, you protect your terrace and property from gazes and thus attract them at the same time. The high-quality aluminium planks are additionally protected with a matt textured lacquer finish, giving them an even more refined look.

One set consists of:

12x high quality aluminium plank
1x end profile
2x spacer with screw material
4x brush seal

Due to the low effort in care and maintenance, you can enjoy the time on your property instead of painting or laborious scrubbing. The simple plug-in system and video assembly instructions make it easy for anyone to erect. Furthermore, the fence is extendable and can be combined with elements from planeo Solid.

For a perfect look, equip the posts with the planeo Glow LED light strips. These shine warm-white into the evening.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: L-pz321800920

simple plug-in system
robust material
weather resistant
low maintenance
can be extended with planeo Glow LED light

Technical data

item no.	L-pz321800920
Weight	35.8000 kg / Packing
Manufacturer	planeo
Colour	grey
EAN	4062212157336
Piece per package	1
Collection	Gardence Metallic
suitable for	Terrace, Garden
Style	Modern
Range of application	Residential
Material	Aluminium
Width in mm	1800
Height in mm	1800
Thickness in mm	20
Doorstop	door left
Hinge	2-teilig (Standard)
Fence type	Privacy fence, Interlocking fence
Shipping group	XL
Package Content	1 Set

Print page

DIY step by step

Variant: DIY Block

button

1. preparation

To begin with, determine the course of the fence and the position of the posts by marking them. The measurement for the distance results from the posts and the fence elements. Dig out the post holes and draw a line for the fence course.

ATTENTION: Dig the post holes at least 30x30x50 cm (for WPC 30x30x80 cm).

button

2. position the posts

Before concreting the posts, mount the spacer. Insert it from above into the groove of the post at the previously marked position. Now fix it with the self-tapping screw. Slide the insertion strips into the 3 surrounding grooves and fix them with masking tape during assembly.

Before mounting, it is imperative to follow the official installation instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

button

3. insert the posts

The posts can then be placed in the excavated foundation holes. Staple the first post to the defined height using battens and screw clamps. Then align all axes using roof battens, screw clamps and a spirit level. Finally, check at the top of the posts with the spirit level that all posts are at the same height.

button

4. set the posts in concrete

Moisten the foundation hole with a watering can. Then fill about 10-15 cm of concrete dry mix into the hole and pour water over it. Then let the mixture soak in. In between, you can compact the concrete with a batten. Repeat the process up to the top edge and then smooth the concrete.

ATTENTION: The posts should be cleaned before the drying time.

button

5. insert elements

To minimise noise, it is advisable to place the brush seals in the posts. Now insert the profiles one by one directly on the spacers.

Tip: Here you can also vary with glass elements and Glow fence lighting strips.

button

6. finish

Finally, cover the last plug-in fence profile with the finishing strip. The post caps are also attached now. If necessary, the posts can be shortened with an angle grinder and a cutting disc, then the cut edges are sealed with zinc spray.
