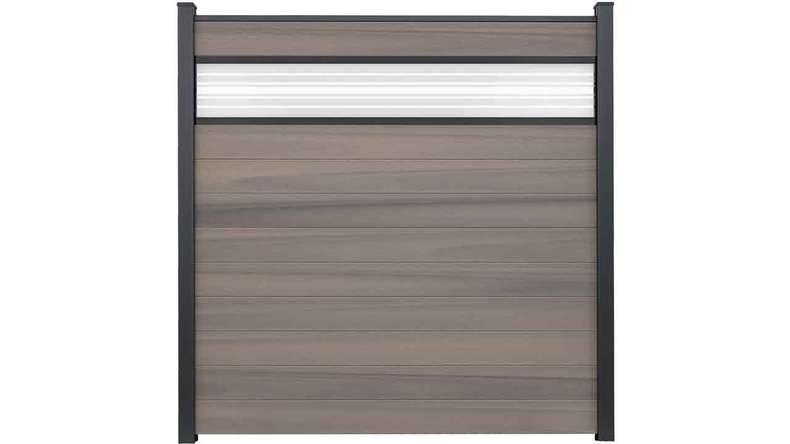

planeo Solid - garden fence design panel Glas30 Bi-Color co-ex

Privacy fence with 360° co-ex protective layer - kit 180x180cm with design element Glas30

Item no.: pz153300000

Co-ex coated for more stability and resistance.
Easy to clean with lukewarm water and a brush.
Heavy soiling can be removed with pressure washers.
No annual maintenance required as with wooden fences.
UV and weather resistant.

Posts must be ordered separately!

Samples refer exclusively to the individual profiles and not to the design elements!

Offer request

Description

Technical data

DIY - Videos

Product description

Co-ex coated for more stability and resistance.
Easy to clean with lukewarm water and a brush.
Heavy soiling can be removed with pressure washers.
No annual maintenance required as with wooden fences.
UV and weather resistant.

Posts must be ordered separately!

Samples refer exclusively to the individual profiles and not to the design elements!

Advantages over wooden fences:

with protective co-ex sheathing

The coextruded fence elements are fully sheathed and less sensitive to scratches and dirt than conventional fence elements. The construction has been improved by thicker outer walls and more hollow chambers. Furthermore, the material composition is further strengthened by additional additives. This makes them more resistant and robust.
Maintenance-free and insensitive
planeo co-ex privacy fences are highly resistant to moisture, insect and fungal attack. Annual maintenance by re-oiling or painting the fence elements is not necessary.

easy to care for and weather resistant

Changing weather conditions and UV radiation have little effect on the privacy screen. The robust co-ex is easy to clean with lukewarm water, a brush or a pressure washer.

Sustainable thanks to BPC core

The co-ex fence elements have a BPC core, which consists of a bamboo and polymer mixture. Bamboo is one of the most robust and resource-saving raw materials in the world.

Included in the set (180x180cm):

10 panels
1 design insert glass30 incl. adapter strips and brush seal
1 end profile
2 spacers

For one element (180x180cm) you need:

2 post cover caps
1-2 post cover strip*
Set in concrete: 2 posts
Dowel-on: 2 posts + GJ 48 brackets
additional design elements glass/aluminium (optional)
for each additional 180 cm set 1 additional post

*For corner installation, 3 groove sides are available on the aluminium post for single profile mounting. This means that the open grooves can be closed off with the post cover strips.

The posts are not included in the set and should be ordered separately.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: pz153300000

Technical data

item no.	pz153300000
Weight	50.0000 kg / Packing
Manufacturer	planeo
Colour	brown
EAN	4250260970353
Piece per package	1
Collection	Gardence Strong
suitable for	Terrace, Garden
Style	Modern
Special features	co-extruded
Range of application	Residential
Material	WPC / BPC
Width in mm	1800
Height in mm	1800
Thickness in mm	19
Variant	Glas 30
Fence type	Privacy fence, Interlocking fence
Shipping group	XL
Package Content	1 Set

Print page

DIY step by step

Variant: DIY Block

button

1. preparation

To begin with, determine the course of the fence and the position of the posts by marking them. The measurement for the distance results from the posts and the fence elements. Dig out the post holes and draw a line for the fence course.

ATTENTION: Dig the post holes at least 30x30x50 cm (for WPC 30x30x80 cm).

button

2. position the posts

Before concreting the posts, mount the spacer. Insert it from above into the groove of the post at the previously marked position. Now fix it with the self-tapping screw. Slide the insertion strips into the 3 surrounding grooves and fix them with masking tape during assembly.

Before mounting, it is imperative to follow the official installation instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

button

3. insert the posts

The posts can then be placed in the excavated foundation holes. Staple the first post to the defined height using battens and screw clamps. Then align all axes using roof battens, screw clamps and a spirit level. Finally, check at the top of the posts with the spirit level that all posts are at the same height.

button

4. set the posts in concrete

Moisten the foundation hole with a watering can. Then fill about 10-15 cm of concrete dry mix into the hole and pour water over it. Then let the mixture soak in. In between, you can compact the concrete with a batten. Repeat the process up to the top edge and then smooth the concrete.

ATTENTION: The posts should be cleaned before the drying time.

button

5. insert elements

To minimise noise, it is advisable to place the brush seals in the posts. Now insert the profiles one by one directly on the spacers.

Tip: Here you can also vary with glass elements and Glow fence lighting strips.

button

6. finish

Finally, cover the last plug-in fence profile with the finishing strip. The post caps are also attached now. If necessary, the posts can be shortened with an angle grinder and a cutting disc, then the cut edges are sealed with zinc spray.
