MSRP 416,95 €

Package price (1 Set): 337,90 €

Price 1 Set: 337,90 €

FREE

SAMPLE

VAT included plus. 144,95 € shipping costs for deliveries to DE

XL

Customer service until 6pm¹ - personal & close
DIY Videos - DIY Instructions

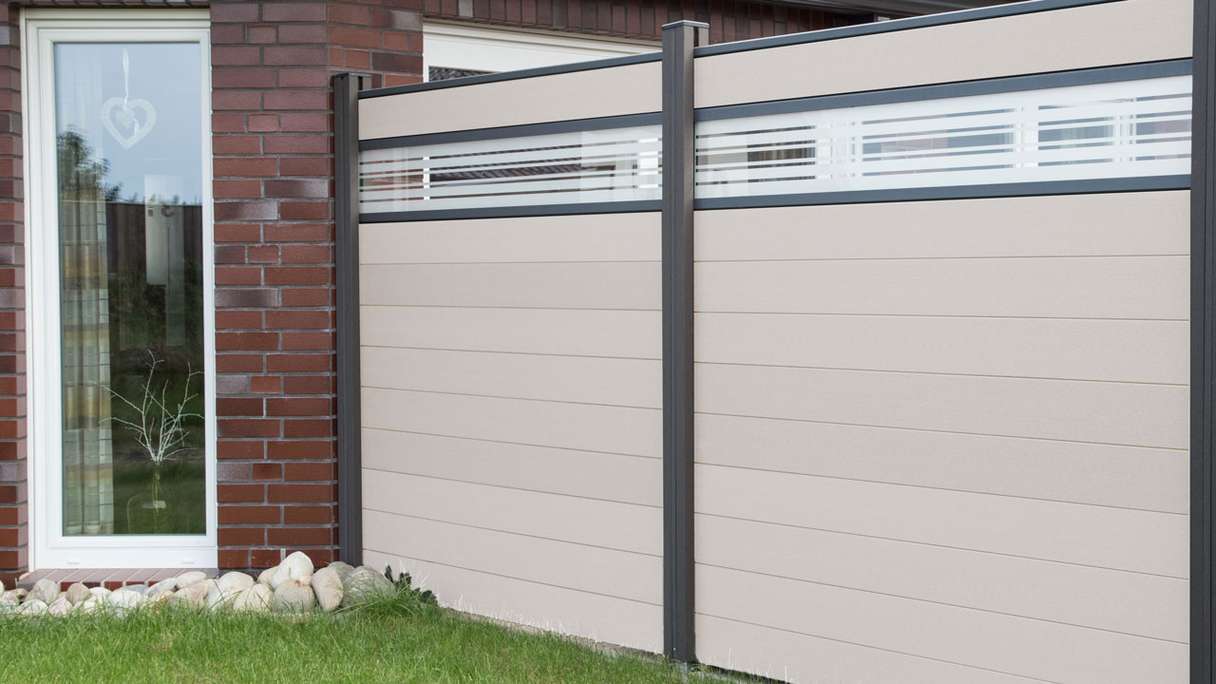

planeo Solid - garden fence design panel Glas30 BiColor Sand

Privacy fence plug-in system kit 180x180cm with design element Glas30

Item no.: pz143000000

UV and weather resistant.
Easy to clean with lukewarm water and a brush.
Heavy soiling can be removed with pressure blasting.
No annual maintenance required as with wooden fences.

Posts must be ordered separately!

Samples refer exclusively to the individual profiles and not to the design elements!

Offer request

Description

Technical data

DIY - Videos

Product description

UV and weather resistant.
Easy to clean with lukewarm water and a brush.
Heavy soiling can be removed with pressure blasting.
No annual maintenance required as with wooden fences.

Posts must be ordered separately!

Samples refer exclusively to the individual profiles and not to the design elements!

Advantages over wooden fences:

maintenance-free and resistant

(bamboo polymer composite

easy to clean and weather resistant

Included in the set (180x180cm):

10 panels
1 design panel Glas30 incl. adapter strips
1 end profile
2 spacers
Brush seal

For one element (180 x 180 cm) you need:

2 mullion caps
1-2 post cover strip*
Set in concrete: 2 posts
Dowel-on: 2 posts + GJ 48 brackets
additional design elements glass/aluminium (optional)
for each additional 180 cm set 1 additional post

*For corner installation, 3 groove sides are available on the aluminium post for single profile mounting. This means that the open grooves can be closed off with the post cover strips.

The posts are not included in the set and should be ordered separately.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: pz143000000

simple plug-in system
robust material
weather resistant
timeless appearance
low-maintenance

Technical data

item no.	pz143000000
Manufacturer	planeo
Collection	Gardence Strong
Width in mm	1800
Thickness in mm	19
suitable for	Terrace, Garden
EAN	4250260954599
Piece per package	1
Material	WPC / BPC
Height in mm	1800
Shipping group	XL
Weight	50,00 kg / Packing
Colour	white
Style	Modern
Range of application	Residential
Variant	Glas 30
Fence type	Privacy fence, Interlocking fence
Package Content	1 Set

Print page

DIY step by step

Variant: DIY Block

button

1. preparation

To begin with, determine the course of the fence and the position of the posts by marking them. The measurement for the distance results from the posts and the fence elements. Dig out the post holes and draw a line for the fence course.

ATTENTION: Dig the post holes at least 30x30x50 cm (for WPC 30x30x80 cm).

button

2. position the posts

Before concreting the posts, mount the spacer. Insert it from above into the groove of the post at the previously marked position. Now fix it with the self-tapping screw. Slide the insertion strips into the 3 surrounding grooves and fix them with masking tape during assembly.

Before mounting, it is imperative to follow the official installation instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

button

3. insert the posts

The posts can then be placed in the excavated foundation holes. Staple the first post to the defined height using battens and screw clamps. Then align all axes using roof battens, screw clamps and a spirit level. Finally, check at the top of the posts with the spirit level that all posts are at the same height.

button

4. set the posts in concrete

Moisten the foundation hole with a watering can. Then fill about 10-15 cm of concrete dry mix into the hole and pour water over it. Then let the mixture soak in. In between, you can compact the concrete with a batten. Repeat the process up to the top edge and then smooth the concrete.

ATTENTION: The posts should be cleaned before the drying time.

button

5. insert elements

To minimise noise, it is advisable to place the brush seals in the posts. Now insert the profiles one by one directly on the spacers.

Tip: Here you can also vary with glass elements and Glow fence lighting strips.

button

6. finish

Finally, cover the last plug-in fence profile with the finishing strip. The post caps are also attached now. If necessary, the posts can be shortened with an angle grinder and a cutting disc, then the cut edges are sealed with zinc spray.
