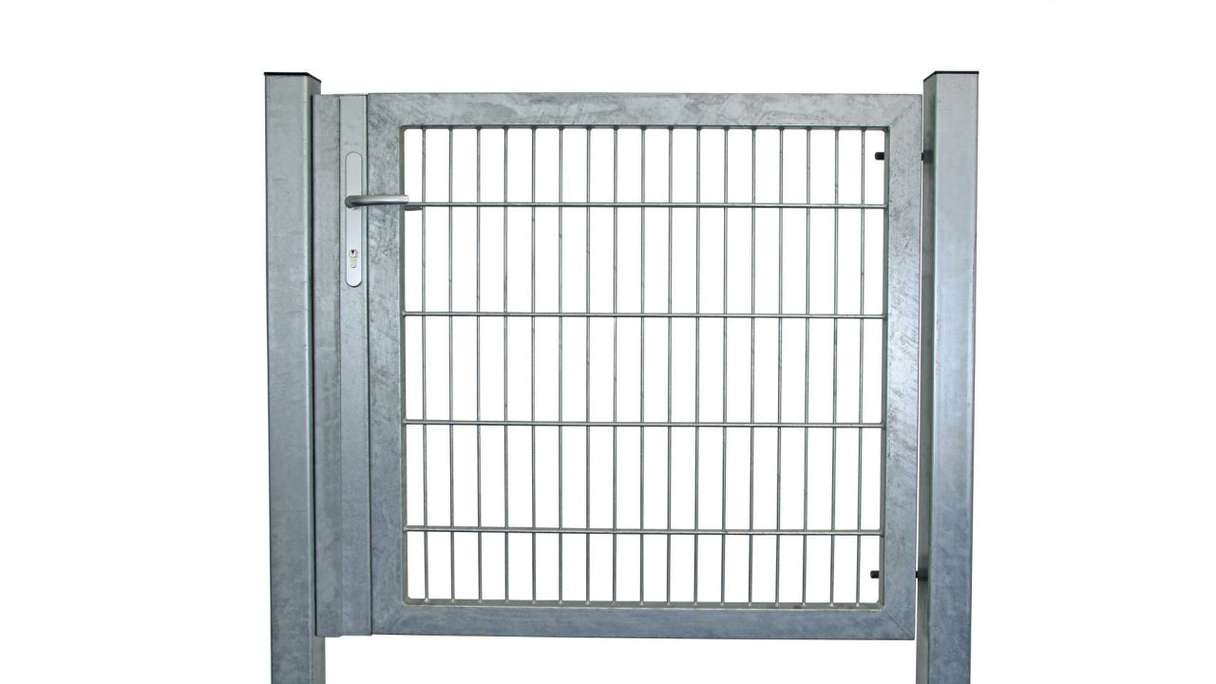

Universal door heavy 1-leaf hot-dip galvanised incl. gateposts
Heavy reinforced fence gate - selectable width & height
Item no.:
DSM_TORS1_FEU_conf
- Bodenwelt
- Hersteller planeo
- Garden Fences
- Garden Gates
- Universal door heavy 1-leaf hot-dip galvanised incl. gateposts
Package price (1 Pc):
478,90 €
To cart
- Customer service until 6pm¹ - personal & close
- DIY Videos - DIY Instructions
- Heavy all-round frame.
- Square tube posts: 80/80/3mm.
- Vertical wire thickness: 6 mm.
- Horizontal wires double: 8 mm.
- Hot-dip galvanised to protect against corrosion.
- Aluminium lever handle set.
- Lock prepared for profile cylinder 31/31mm.
- Stop bar can be used DIN left & right.
- All single leaves can be combined (double door).
Offer request
Description
Technical data
DIY - Videos
Product description
- Heavy all-round frame.
- Square tube posts: 80/80/3mm.
- Vertical wire thickness: 6 mm.
- Horizontal wires double: 8 mm.
- Hot-dip galvanised to protect against corrosion.
- Aluminium lever handle set.
- Lock prepared for profile cylinder 31/31mm.
- Stop bar can be used DIN left & right.
- All single leaves can be combined (double door).

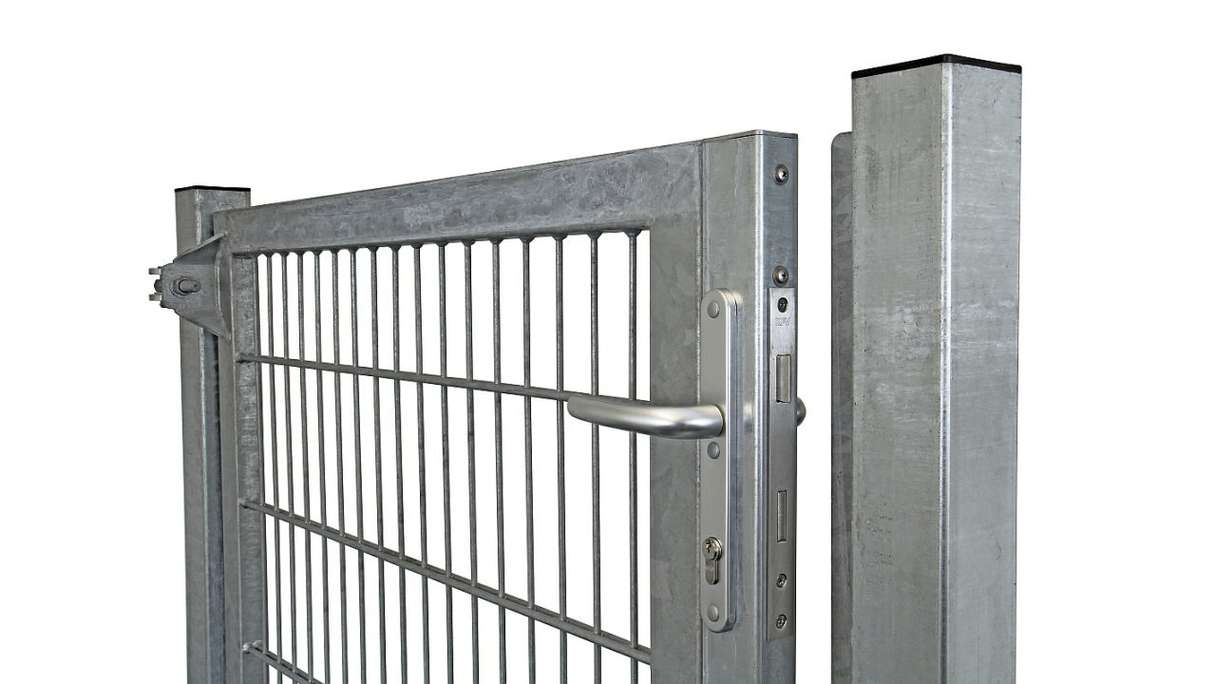

The heavy-duty universal gate has an extra robust square tube post.
The gate can be adjusted as required by means of eyebolts and can be opened by 180°.
The heavy meshes have two horizontal and parallel wires with a diameter of 8 mm. In between, vertical wires with a thickness of 6 mm together form the mesh look.

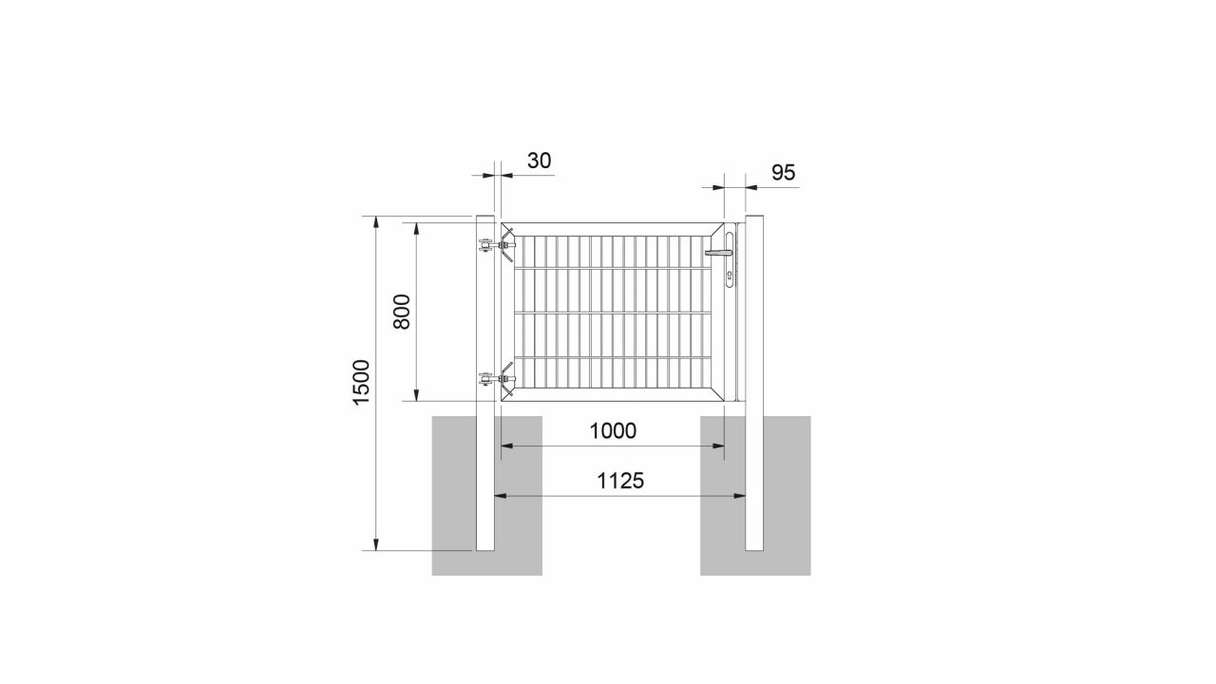

- Machine width: 50/200 mm
- Distance to posts: 112.5/132.5/157.5/212.5 cm
- Scope of delivery:
- Square surrounding frame: 60/40 mm
- Square post: 80/80/3 mm
- Gate infill: Double rod mesh 8/6/8 mm
- Adjustable hangers with M16 eyebolts
- Aluminium lever handle set
- Stop bar DIN left/right usable
- Prepared for profile cylinder 31/31 mm
- 2 fence connection strips
- Hook screws according to height
Please note: The lock latch must be set to the desired DIN direction before installation!
The gates can be used as DIN left or right hinges. You can combine the gates in any variant as a double gate and also in combination with asymmetrical (different lengths) gate systems.
planeo
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
item no.: DSM_TORS1_FEU_conf
- heavy version
- robust double bar
- durable rust protection
- timeless look
Technical data
| item no. | DSM_TORS1_FEU_conf |
|---|---|
| Manufacturer | planeo |
| Material | Metal |
| Piece per package | 1 |
| Style | Classic |
| Shipping group | XL |
| Fence type | Double picket fence |
| Package Content | 1 Pc |
