planeo Gartenbeleuchtung 12V - LED lamp accessories LED strip 15m on roll - 2.2W 80Lumen

Name: planeo Gartenbeleuchtung 12V - LED lamp accessories LED strip 15m on roll - 2.2W 80Lumen
Brand: planeo
SKU: 175L
Price: 154.9 EUR
Availability: InStock

Flexible LED strip made of plastic

Item no.: 175L

Very simple assembly.

Installation possible without specialist knowledge.

Permanently expandable & flexible system.

20,000 hours lifetime.

Offer request

Description

Technical data

Product description

Very simple assembly.

Installation possible without specialist knowledge.

Permanently expandable & flexible system.

20,000 hours lifetime.

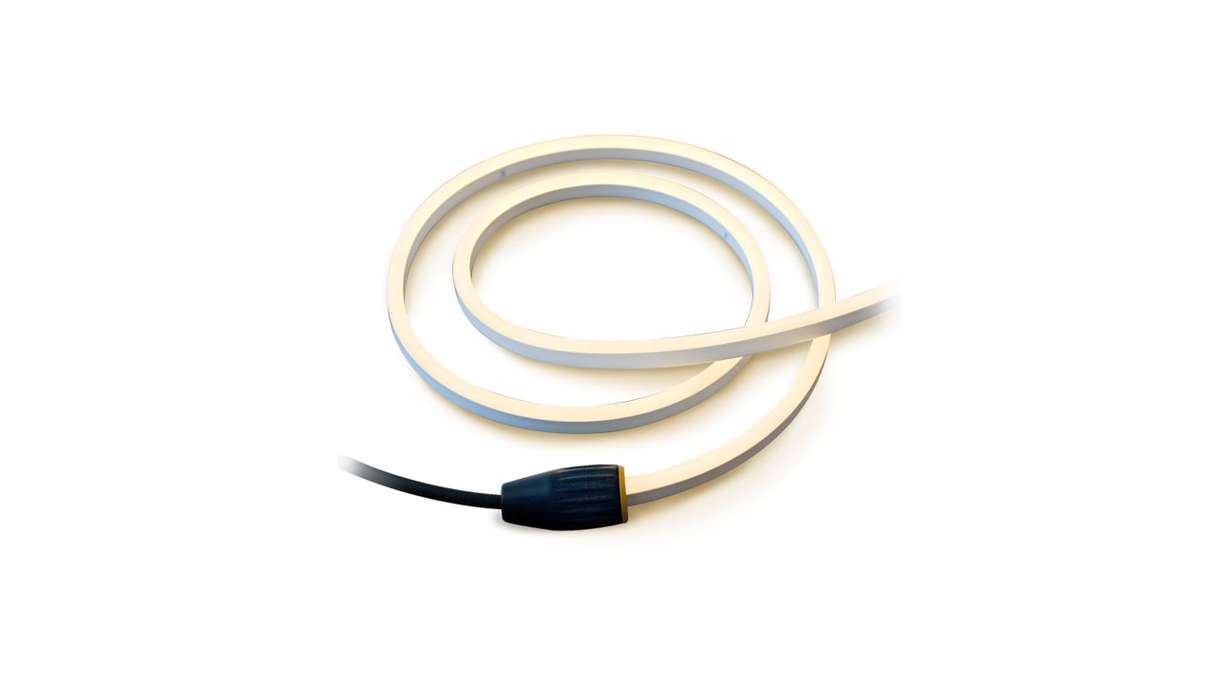

planeo garden lighting LED strip 15m roll

The rope light can be used for various outdoor applications, such as stairs, edges and roofing. The strip can be cut to the desired length, taking into account the connection points 50cm apart!

5 years warranty

light colour: warm at 80 lumen
average lifetime: 20000 hours

Scope of delivery:

1 SMD LED light 12V - 2,2W 15m roll

sold separately:

LED strip connector

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: 175L

simple & flexible
Assembly without specialist knowledge

Technical data

item no.	175L
Weight	3.1000 kg / Packing
Manufacturer	planeo
Type	Lamp accessories
EAN	5907800859850
Piece per package	1
Collection	GardinoLights
Length in mm	15000
Width in mm	10
Height in mm	15
Warranty	5 Jahre
Shipping group	S
Package Content	1 Pc

Downloads

Print page

DIY step by step

Variant: DIY-Instruction

button

1. preparation

Before mounting the luminaires, determine the position of the transformer and connect it. Choose the position of the transformer so that it is centrally located and allows short cable runs. Next, plan the position and type of lighting. Once you have determined the positions, the main cable is distributed and connected to the transformer. Insulate the cut edges with the caps provided. Now hide the cable. The procedure varies depending on the type of lighting.

ATTENTION: Calculate which transformer is needed. To do this, you should pay attention to the wattage of the lamp you want to use. These wattages per spot are added to the number of lamps. This results in the transformer. We recommend that you choose the next largest transformer so that more spots can be connected later.

button

Floor spotlights:

For dimmable and non-dimmable floor spots, it is important to remember that the cable must be buried if it cannot be covered with paving stones/patio slabs/patio boards.

ATTENTION: Dig the cable deep enough into the ground so that it is not damaged when scarifying/lawn mowing.

button

Wall light:

With wall lights, you can simply hide the cable in a cable duct.

button

Recessed luminaire:

Here, the cable is hidden under the substructure of the composite decking boards or in the chippings under decking slabs or paving stones.

button

Free-standing luminaire:

Depending on the location (patio or walkway lighting), the cable is hidden under the patio or in the ground.

button

After the cable has been hidden, you can attach separate circuits as desired. Paths and bushes can be switched separately if you interconnect a receiver with a T-connector to the main cable.

button

You can also integrate our motion detectors into our system to light up certain areas only when you are there.

2. attaching & connecting lighting

The further procedure for fixing the lighting also differs depending on the type of lighting.

button

Wall & floor luminaire:

Now attach the wall lights or free-standing luminaires. Use the fixing material supplied to screw the wall lights into the substrate. Mark the points with a pencil, which are then drilled. Then hammer the dowels into the pre-drilled holes. Before screwing on the luminaire, we recommend sealing the drill holes with silicone to protect against moisture penetration. Now connect the luminaires to the connector using the main cable.

button

Floor spotlight:

Once the cable is connected, prepare the spotlights. This involves placing the light bulbs in the spotlights. Dig holes so that the recessed spotlights can then be placed in the ground or subfloor. The mounted lights are now connected to the cable with a T-piece. Finally, you can bury the cable or hide it under stones.

ATTENTION: Before inserting the lamp into the ground, you can adjust the light intensity on the back of the dimmable lamp by means of a push button.

button

Recessed luminaire:

First, the first composite decking boards can be laid up to the first recessed light mark. Drill the marked areas with a hole saw and connect the recessed luminaire to the main cable using the T-connector. Check that the recessed luminaire is working properly before proceeding with the installation of the next boards.
