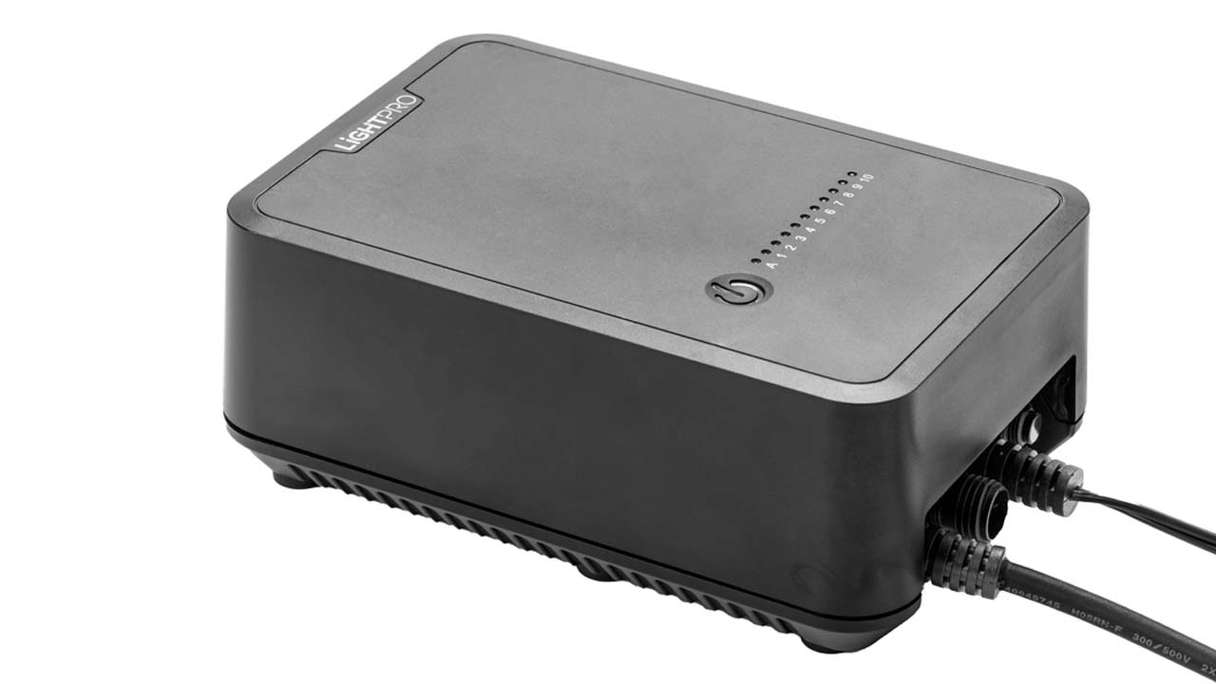

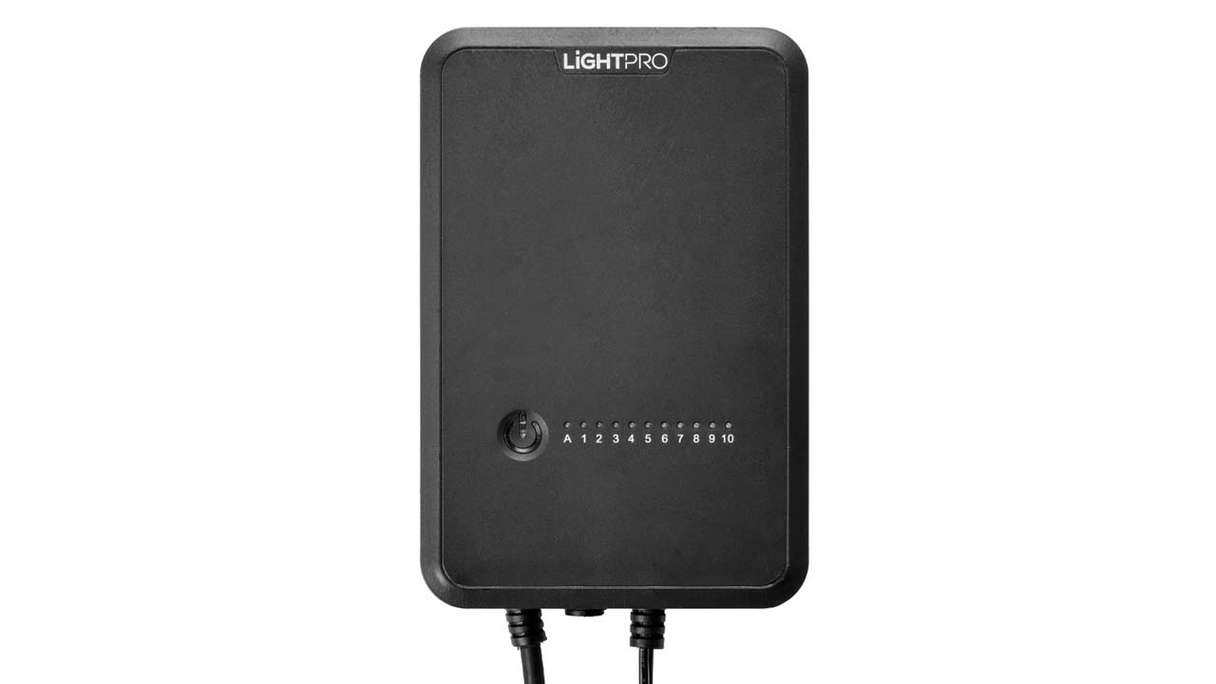

planeo lighting system - transformer 12V - 100 W

Simple, practical, stylish: our transformer for the planeo lighting system

Item no.: 225A

The connecting piece 225A must be ordered separately.
High-quality switchable transformer 12V - 100W.
Can be combined with other lighting systems (please note total number of watts).
With touch control.
Automatic mode and time settings.
Light sensor with 2m cable.

Offer request

Description

Technical data

Product description

The connecting piece 225A must be ordered separately.
High-quality switchable transformer 12V - 100W.
Can be combined with other lighting systems (please note total number of watts).
With touch control.
Automatic mode and time settings.
Light sensor with 2m cable.

The planeo - transformer 12V - 100 W offers:

a touch control
automatic mode and time settings from 1 to 10 hours.
a full utilisation of the power. The old version could only be used to 75% capacity.
The main cable is connected with connector M (138A). Thus, connector Y is no longer required.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: 225A

Technical data

item no.	225A
Weight	3.3900 kg / Packing
Manufacturer	planeo
Type	Lamp accessories
EAN	4062212185438
Piece per package	1
Collection	GardinoLights
Range of application	Residential
Length in mm	185
Width in mm	123
Height in mm	77
Doorstop	door left
Hinge	2-teilig (Standard)
Shipping group	S
Package Content	1 Pc
