planeo patio lighting 12V - LED recessed light Onyx 30 RA - 0.5W 4Lumen

Item no.: 241D

When installing patio lighting, ensure that the patio has a suitable installation height !

Very simple installation.
Installation possible without specialist knowledge.
Permanently expandable & flexible system.

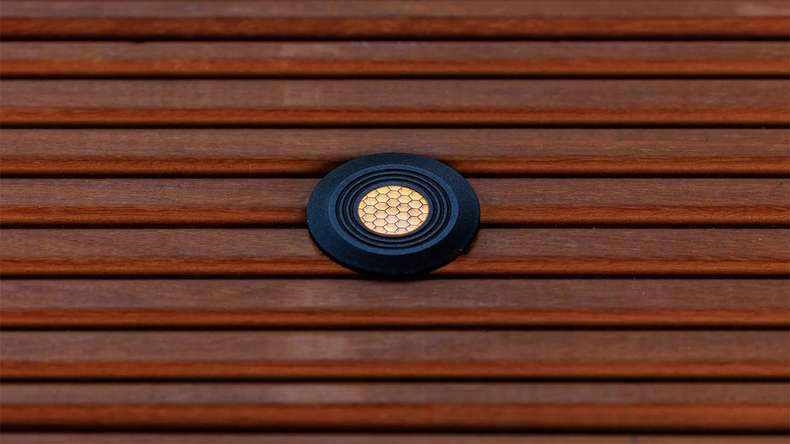

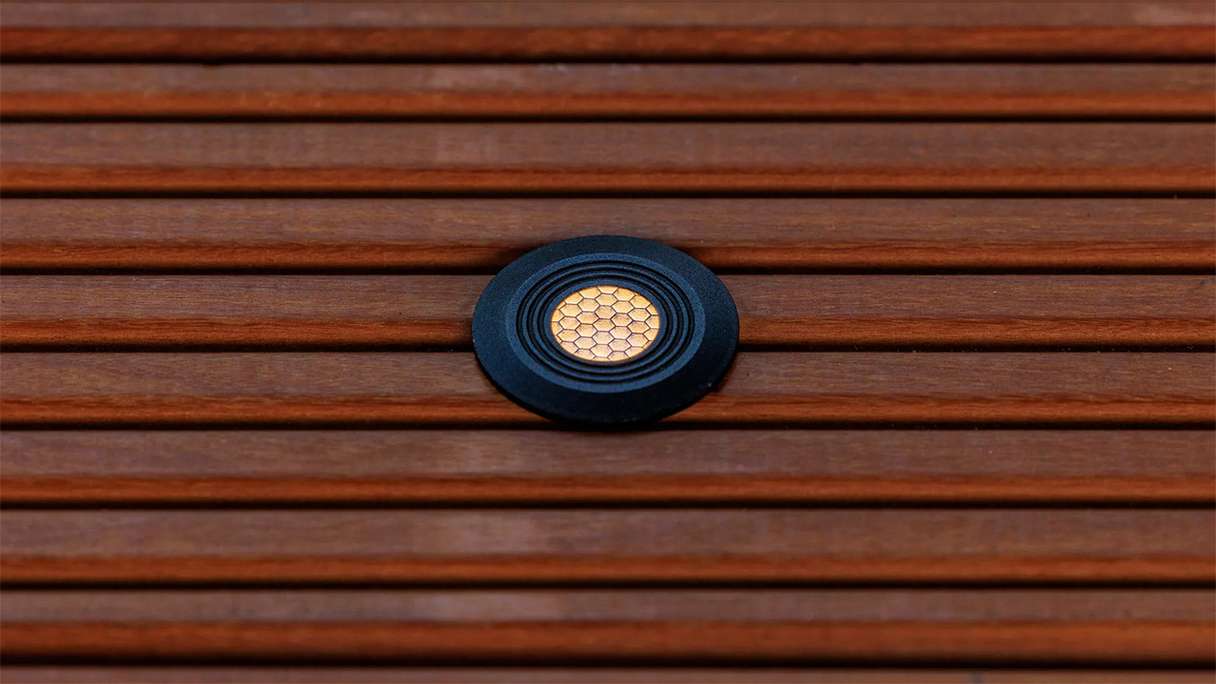

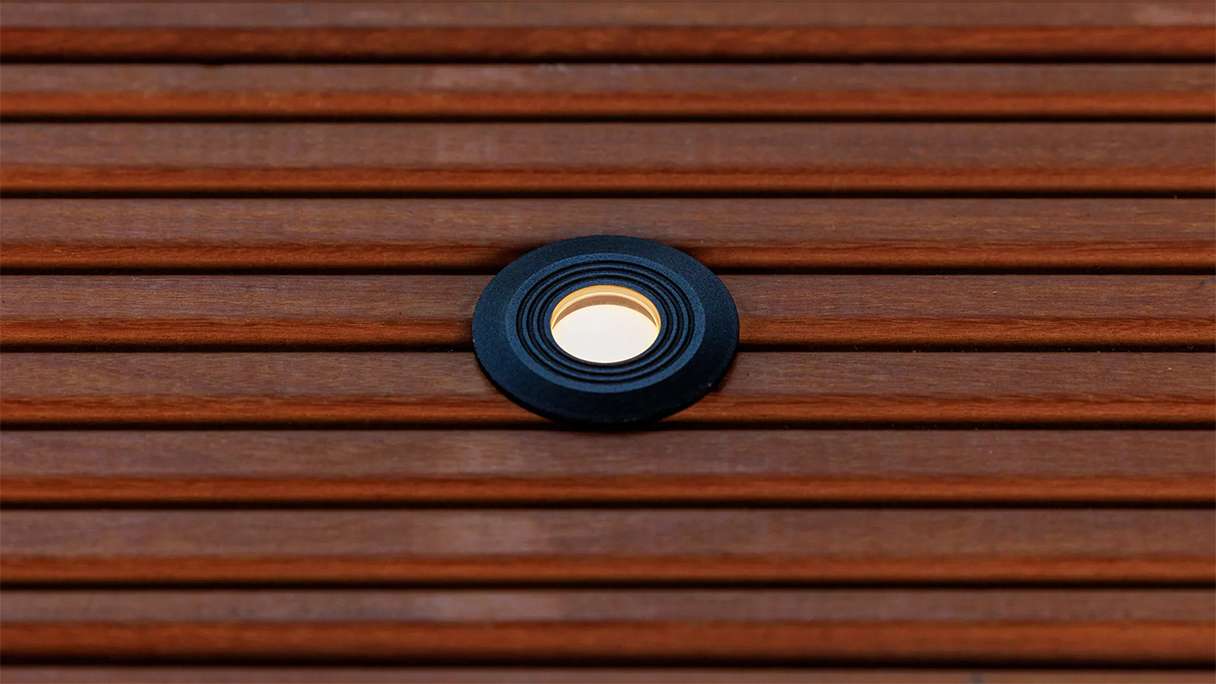

3 different lighting effects thanks to insertable glass.
Ideally suited for planeo terraces.

When installing patio lighting, ensure that the patio has a suitable installation height !

Very simple installation.
Installation possible without specialist knowledge.
Permanently expandable & flexible system.
3 different lighting effects thanks to insertable glass.
Ideally suited for planeo terraces.

Offer request

Description

Technical data

We recommend the following accessories

Product description

When installing patio lighting, ensure that the patio is at a suitable height!

Lamp 59mm + approx. 20mm so that the cable is not subjected to too much strain

Scope of delivery:

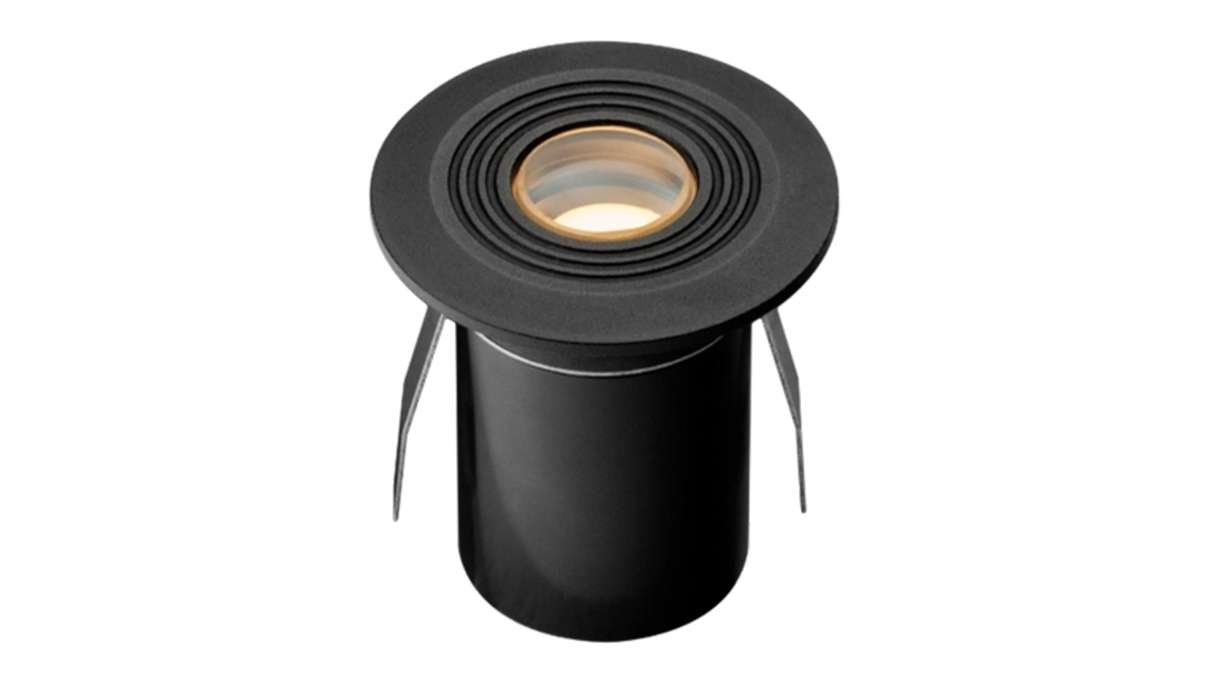

1 stainless steel LED light 12V - 0.5W
1 m extension cable 146A
1 F-connector (connecting piece 137A)
1 earth tube
1 removable frosted glass cover for dimmed light (pre-assembled)
1 clear glass pane (pre-assembled)
1 honeycomb glass plastic pane

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: 241D

high quality
simple & flexible
Assembly without specialist knowledge
3 different light effects

Technical data

item no.	241D
Weight	0,18 kg / Packing
Manufacturer	planeo
Type	Recessed light
EAN	4062212206065
Piece per package	1
Collection	GardinoLights
suitable for	Terrace, Garden
Special features	Car passable
Range of application	Residential
Length in mm	45
Width in mm	45
Height in mm	59
Warranty	6 years
Shipping group	S
Package Content	1 Pc
