planeo patio lighting 12V - LED recessed light Onyx 60 RA - 1W 23Lumen

Item no.: 243D

When installing patio lighting, ensure that the patio has a suitable installation height !

Very simple installation.
Installation possible without specialist knowledge.
Permanently expandable & flexible system.

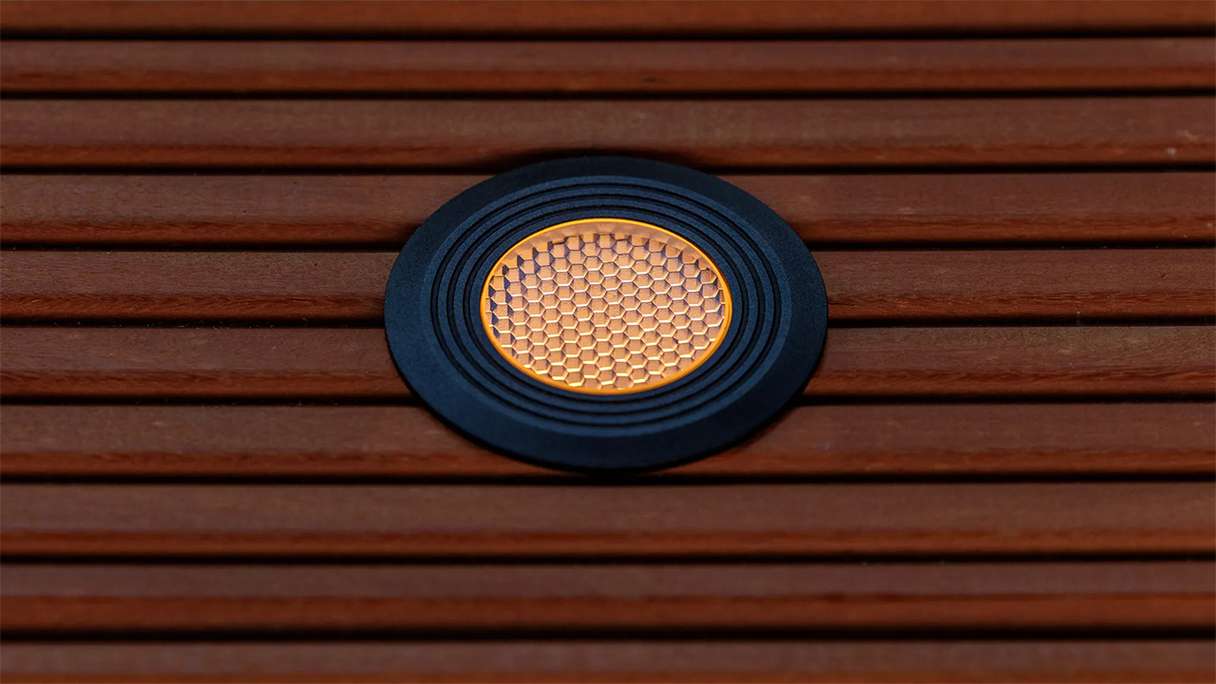

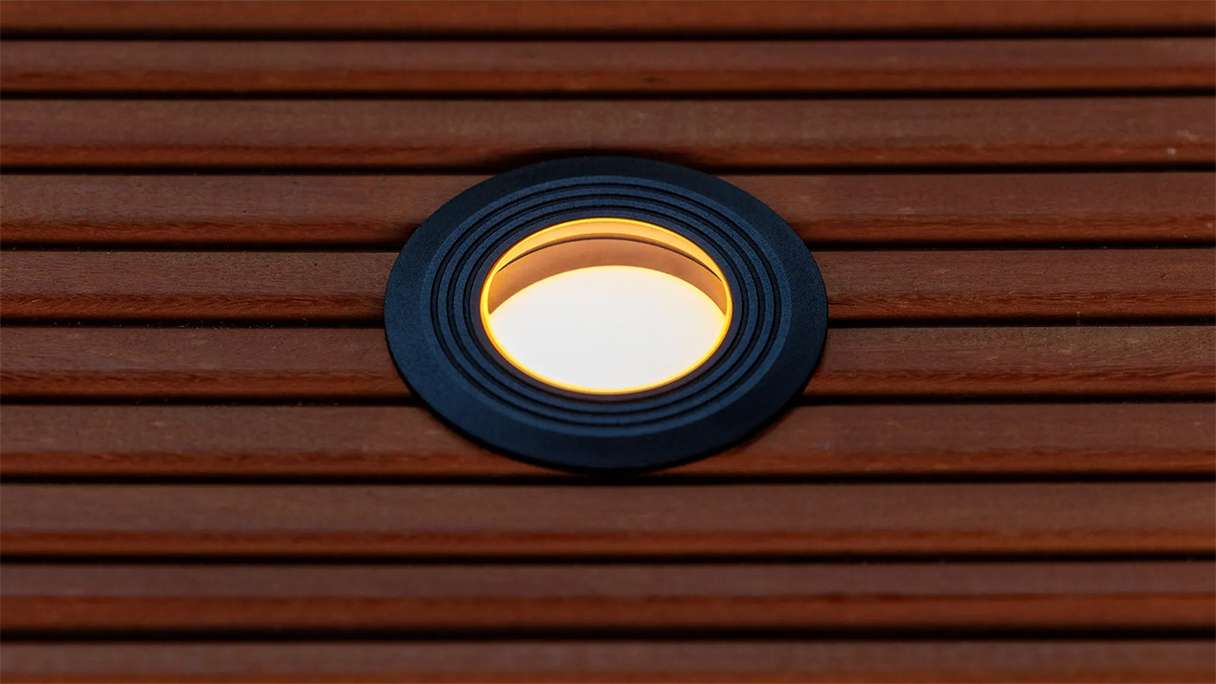

3 different lighting effects thanks to insertable glass.
Ideally suited for planeo terraces.

When installing patio lighting, ensure that the patio has a suitable installation height !

Very simple installation.
Installation possible without specialist knowledge.
Permanently expandable & flexible system.
3 different lighting effects thanks to insertable glass.
Ideally suited for planeo terraces.

Offer request

Description

Technical data

We recommend the following accessories

Product description

When installing patio lighting, ensure that the patio is at a suitable height!

Lamp 59mm + approx. 20mm so that the cable is not subjected to too much strain

Scope of delivery:

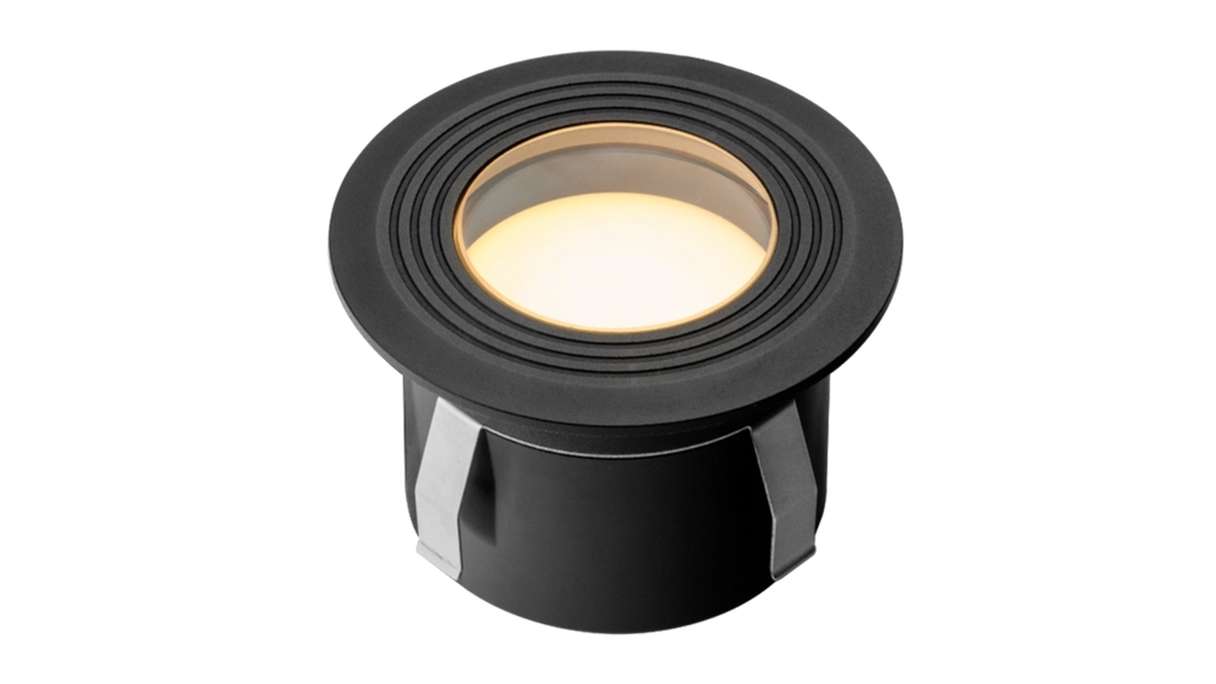

1 stainless steel LED light 12V - 1W
1 m extension cable 146A
1 F-connector (connecting piece 137A)
1 earth tube
1 removable frosted glass cover for dimmed light (pre-assembled)
1 clear glass pane (pre-assembled)
1 honeycomb glass plastic pane

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: 243D

high quality
simple & flexible
Assembly without specialist knowledge
3 different light effects

Technical data

item no.	243D
Weight	0,28 kg / Packing
Manufacturer	planeo
Type	Recessed light
EAN	4062212206072
Piece per package	1
Collection	GardinoLights
suitable for	Terrace, Garden
Special features	Car passable
Range of application	Residential
Length in mm	75
Width in mm	75
Height in mm	59
Warranty	6 years
Shipping group	S
Package Content	1 Pc

Downloads

LED-Einbauleuchte Onyx 60 RA - Datenblatt

Print page

DIY step by step

Variant: DIY-Instruction

button

1. preparation

Before mounting the luminaires, determine the position of the transformer and connect it. Choose the position of the transformer so that it is centrally located and allows short cable runs. Next, plan the position and type of lighting. Once you have determined the positions, the main cable is distributed and connected to the transformer. Insulate the cut edges with the caps provided. Now hide the cable. The procedure varies depending on the type of lighting.

ATTENTION: Calculate which transformer is needed. To do this, you should pay attention to the wattage of the lamp you want to use. These wattages per spot are added to the number of lamps. This results in the transformer. We recommend that you choose the next largest transformer so that more spots can be connected later.

button

Floor spotlights:

For dimmable and non-dimmable floor spots, it is important to remember that the cable must be buried if it cannot be covered with paving stones/patio slabs/patio boards.

ATTENTION: Dig the cable deep enough into the ground so that it is not damaged when scarifying/lawn mowing.

button

Wall light:

With wall lights, you can simply hide the cable in a cable duct.

button

Recessed luminaire:

Here, the cable is hidden under the substructure of the composite decking boards or in the chippings under decking slabs or paving stones.

button

Free-standing luminaire:

Depending on the location (patio or walkway lighting), the cable is hidden under the patio or in the ground.

button

After the cable has been hidden, you can attach separate circuits as desired. Paths and bushes can be switched separately if you interconnect a receiver with a T-connector to the main cable.

button

You can also integrate our motion detectors into our system to light up certain areas only when you are there.

2. attaching & connecting lighting

The further procedure for fixing the lighting also differs depending on the type of lighting.

button

Wall & floor luminaire:

Now attach the wall lights or free-standing luminaires. Use the fixing material supplied to screw the wall lights into the substrate. Mark the points with a pencil, which are then drilled. Then hammer the dowels into the pre-drilled holes. Before screwing on the luminaire, we recommend sealing the drill holes with silicone to protect against moisture penetration. Now connect the luminaires to the connector using the main cable.

button

Floor spotlight:

Once the cable is connected, prepare the spotlights. This involves placing the light bulbs in the spotlights. Dig holes so that the recessed spotlights can then be placed in the ground or subfloor. The mounted lights are now connected to the cable with a T-piece. Finally, you can bury the cable or hide it under stones.

ATTENTION: Before inserting the lamp into the ground, you can adjust the light intensity on the back of the dimmable lamp by means of a push button.

button

Recessed luminaire:

First, the first composite decking boards can be laid up to the first recessed light mark. Drill the marked areas with a hole saw and connect the recessed luminaire to the main cable using the T-connector. Check that the recessed luminaire is working properly before proceeding with the installation of the next boards.
