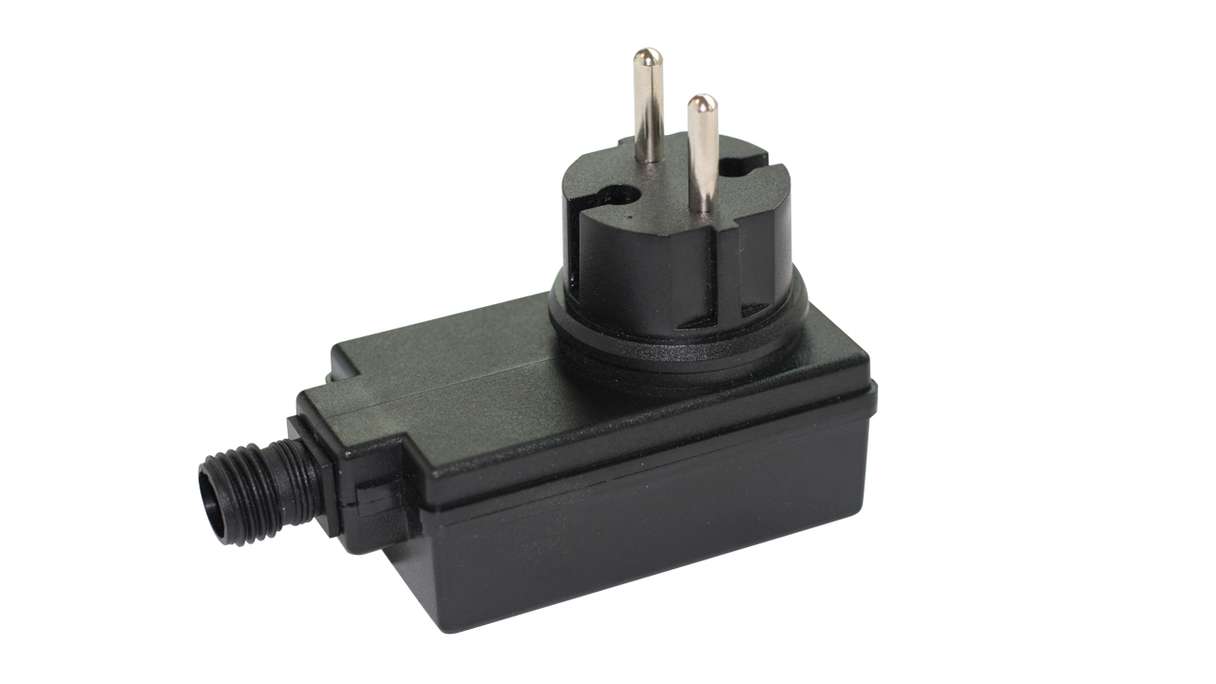

planeo - Transformer 12V - 24W for planeo lighting system

for planeo lighting system - requires connector 138A

Item no.: 198A

Single transformer 12V - 24W.
The 138A connector must be ordered separately.
For the capacity, note the length of the cable and the wattage of the lamps to be connected.

Single transformer 12V - 24W.
The 138A connector must be ordered separately.
For the capacity, note the length of the cable and the wattage of the lamps to be connected.

Offer request

Description

Technical data

We recommend the following accessories

Product description

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: 198A

Technical data

item no.	198A
Weight	0,35 kg / Packing
Manufacturer	planeo
Type	Lamp accessories
EAN	8719979281335
Piece per package	1
Collection	GardinoLights
Range of application	Residential
Shipping group	S
Package Content	1 Pc
