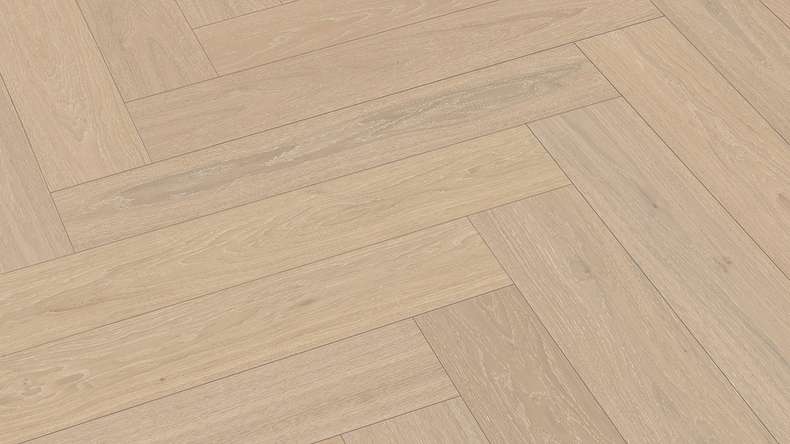

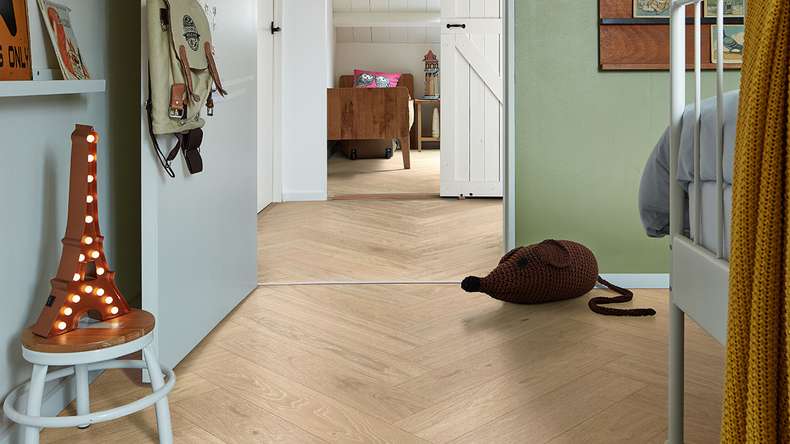

planeo Wood Flooring - Noble Wood Herringbone Oak Verdal | Made in Germany (EDP-0398)

V-groove (2 sides) - Click system Drop-Down - Herringbone - ultra matt lacquered - brushed - light brown

Item no.: EDP-0398

Surface made of real wood.
Made from natural materials.
Extremely hard-wearing and durable.
Calm and harmonious look.

Offer request

Description

Technical data

DIY - Videos

Product description

Surface made of real wood.
Made from natural materials.
Extremely hard-wearing and durable.
Calm and harmonious look.

Noble Wood flooring from planeo is hard-wearing and easy to clean:

Hard-wearing high-tech wood flooring
natural & calm look
easy to install
environmentally friendly

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: EDP-0398

Blue Angel
easy to clean
healthy to live with
flame retardant

Technical data

item no.	EDP-0398
Installation type	click
installation pattern	Herringbone
Wood type	Oak
Sorting (grain)	natural/classic
Joint	V-groove (2 sides)
Underfloor heating	suitable
Click system	Drop-Down
Weight	10.0000 kg / Packing
Manufacturer	planeo
Colour	light brown
EAN	4062212174401
Piece per package	10
Collection	Noble Wood
Surface treatment	varnished
Special features	Waterproof, Energy-efficient, Sustainable
Range of application	Residential
Length in mm	700
Width in mm	140
Thickness in mm	11
Warranty	20 Jahre Privat
Percentage discount	5
Shipping group	L
Package Content	0,98 m²

Downloads

Print page

DIY step by step

Variant: DIY-Instruction

button

1. substrate check

The subfloor should be permanently dry, load-bearing and even.

ATTENTION: Never lay parquet over a soft subfloor, e.g. over carpet, cork or any type of foam underlay.

button

2. acclimatisation

The planks should be stored horizontally in the room where they are to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after the installation.

Before laying, it is imperative that the official laying instructions, which are included in each package, are followed, otherwise any claim to warranty and guarantee will be invalidated!

button

3. subfloor preparation

Then clean the surface to be laid with a hoover. Any unevenness exceeding 3 mm per linear metre is sanded down and filled with a floor levelling compound.

Click:

button

4. before laying

Spread out the PE foil with an overlap of approx. 10 cm and tape it down.Now you can lay out the strips of impact sound insulation butt to butt against the laying direction of the floor covering and fix all overlaps with aluminium tape. The foil side should always face upwards.

Tip: Open several packages of the parquet at the same time and mix the planks to achieve an optimal installation pattern.

button

5. laying instructions

Lay the first plank well aligned on the subfloor, taking the edge distances into account. You can start laying the floor on the left side of the room. In the first row, the plank is clicked in with the front side. Use a rubber mallet to tap lightly on the front side so that the click connection snaps in well. In the next row, the planks are first clicked in with the long side and then the ends can be fixed by tapping lightly. To cut a plank, now take measurements and mark the plank. This is then cut with a jigsaw or crosscut saw.

ATTENTION: There must always be a gap of approx. 10 mm between the flooring and the wall and between the flooring and all fixed components.

button

6. last row

Cut the planks of the last row to size and click them in place using a pull iron. Finally, the planks can be tapped down again with a hammer.

button

7. finish

The PU foil is now cut approx. 2 cm high and the skirting boards can be fitted. Here there is the click or glue variant.

Glue:

button

4 Before gluing

Lay out the first two rows of planks and make marks in the subfloor with a pencil. The planks can be cut to size using a crosscut saw.

Tip: Open several packages of the parquet at the same time and mix the planks to achieve an optimal installation pattern.

button

5. laying instructions

Now pick up the planks again and apply the adhesive up to the marking with a notched trowel. Align the first plank and place it in the wet bed. The second plank is clicked into the already lying plank with the front side. The boards of the next row are laid first with the long side, then with the short side. Then the adhesive for the next two rows can be applied and the planks can be glued.

ATTENTION: There must always be a gap of approx. 10 mm between the flooring and the wall as well as to all fixed components.

button

6. last row

Finally, you can attach the skirting boards.
