planeo Lacquer interior door Lacquer 2.0 - Franco 9016 White lacquer

Name: planeo Lacquer interior door Lacquer 2.0 - Franco 9016 White lacquer
Brand: planeo
SKU: T-fran-L9016
Price: 774.9 EUR
Availability: InStock

High-quality interior door with round edge - deep milled grooves on MDF blocking panel - white lacquered with intermediate sanding by hand

Item no.: T-fran-L9016

Offer request

Description

Technical data

Product description

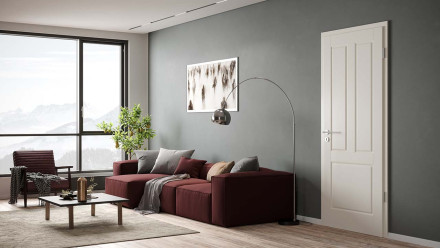

With the planeo interior lacquer door - Franco 9016 white lacquer, you equip your home with a high-quality door model in a timeless design.

Made from one piece and refined with deep milling. This model convinces with quality, which is particularly due to the elaborate manufacturing process. A multi-layer white lacquer is applied with an intermediate sanding by hand. To top it off, the core of the door leaf consists of an MDF barrier board, which provides strength and stability.

Features:

Sandwich construction made of MDF board with deep-drawn milled recesses.
Centre layer made of stable MDF barrier board
Door leaf is milled from one piece
Painted with intermediate sanding by hand
Door leaf thickness of approx. 40 mm
three-sided rebated door leaf according to DIN 13 x 25.5 mm
rounded door edges - impact resistant and robust

Included as standard:

2 drill-in hinges 3-piece V 0026 nickel-plated
Bunt beard lock- 55 mm backset, 72 mm distance, forend 20 mm silver-coloured

Optional to order:

WC lock - 55 mm thorn, 78 mm distance, forend 24 mm silver-coloured

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: T-fran-L9016

Technical data

item no.	T-fran-L9016
Weight	18.0000 kg / Packing
Manufacturer	planeo
Colour	white
Type	Interior door
EAN	4062212191941
Piece per package	1
Collection	Lacquer 2.0
Look	solid colour
Style	Country house
Range of application	Residential
Lacquer \| Surface	White lacquer 9016
Join	DIN 25,5x13 mm
Frame	MDF
Middle position	MDF-Absperrplatte
Deck board	MDF-Platte
Light cut-out	ohne LA
Lock faceplate	Stulp 20mm silberfarbig
Floor seal	ohne Bodendichtung
Hinge	3-teilig (Robust)
Shipping group	L
Package Content	1 Pc

Downloads

planeo timber lining frames - Instructions

Print page

DIY step by step

Variant: DIY instructions

button

1. Measure the door

The first step is to acquire accurate measurements in order to order the correct door. Check the wall's level using a spirit level. Begin by determining the height from the floor. Then, in the finished state (with plaster and covering), measure the wall thickness at three points: top, middle, and bottom. Apply the same logic to the other side. Finally, the width of the door is measured at all three places. Determine the door hinge once the measurements have been determined and noted.

ATTENTION: If the floor has not yet been constructed, add the construction height of the floor to the measurement to ensure that the door is the correct height. When measuring the breadth, the width of the tiles on the wall is also considered.

button

2. Acclimatisation & preparation

The door and all other components should be stored horizontally in the packs in the room where they will be assembled for at least 48 hours before assembly. This allows the material to adjust to ambient temperature and reduces the amount of "labour" required after installing. Before processing, arrange the components. Open the packages carefully so that the cutter knife does not damage the door/frame.

Before laying, the official assembly instructions provided in each item must be followed, or any warranty and guarantee claims will be null and invalid!

button

3. Mount the frame

To assemble the frame together, first glue and screw the various pieces together. Connect the two frame components by placing the wooden plates into the joints after applying adhesive to the mitred surfaces of the longitudinal and transverse linings. Insert the connector into the hole in the frame and tighten it with a screwdriver. Metal clips are then used to secure the elements. A wet cloth can be used to remove excess glue. This is then done on the opposite side. The structure is then installed around 3 mm above the floor to protect it from moisture (e.g. cleaning water). As soon as it is in position, use a frame clamp to align it and foam it using 2-component foam. The clamps can be removed after curing. The ornamental cladding is now fixed and in place.

Tip: As an alternative to the clamps, you can also work with wedges and wooden slats.

button

4. Hang the door

You can hang the door after installing the frame and ornamental panel and inserting the hinges. Install the hinges. Remove the door's storage feet and hang it on the hinges provided.

button

5. Mount handles

The door handles are finally installed. Drill holes for the door handles using the provided drilling pattern. On both sides, drill a rough fray. The fittings are then carefully inserted and assembled. Finally, insert the plunger and install the ornamental panel.
