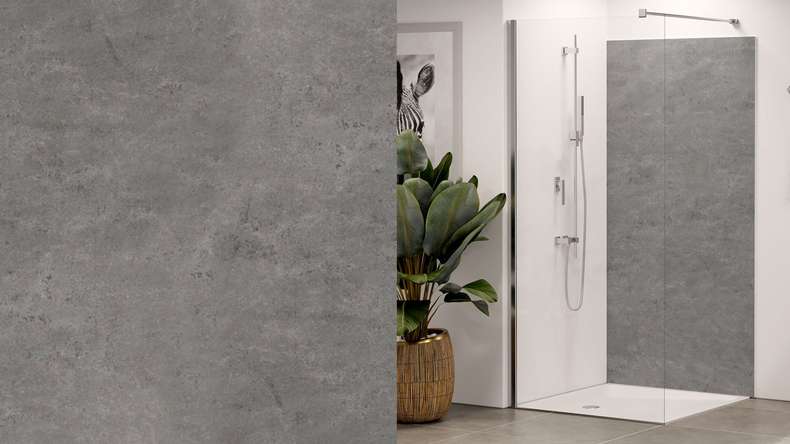

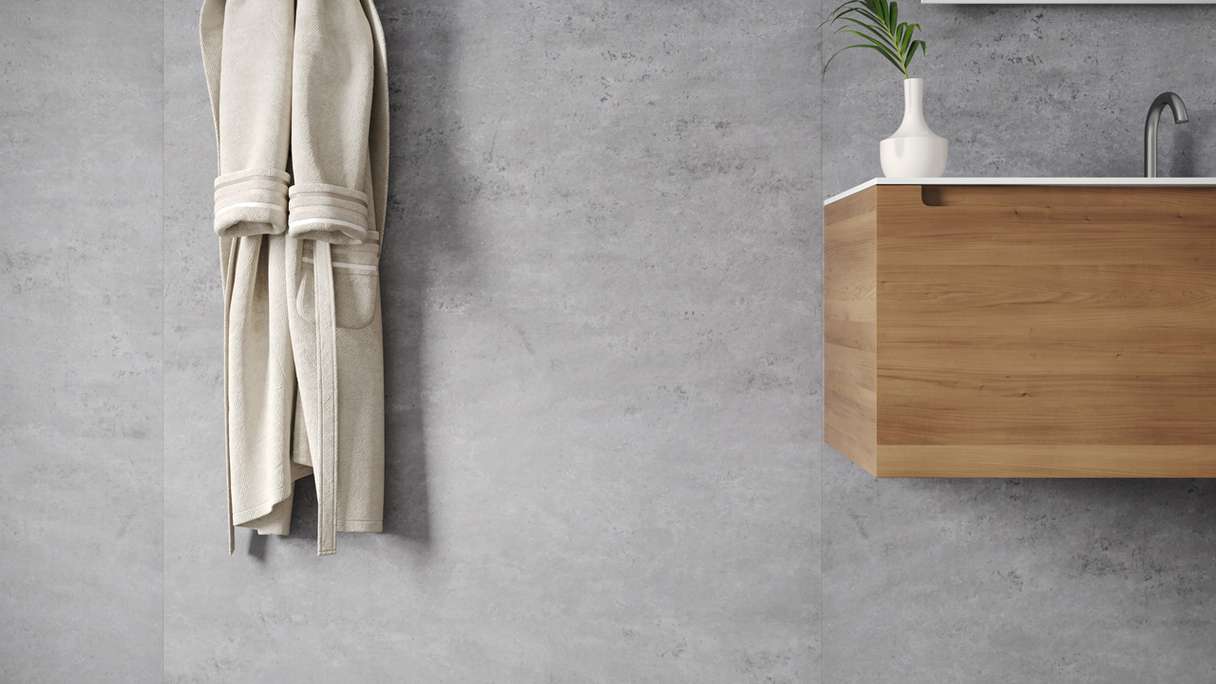

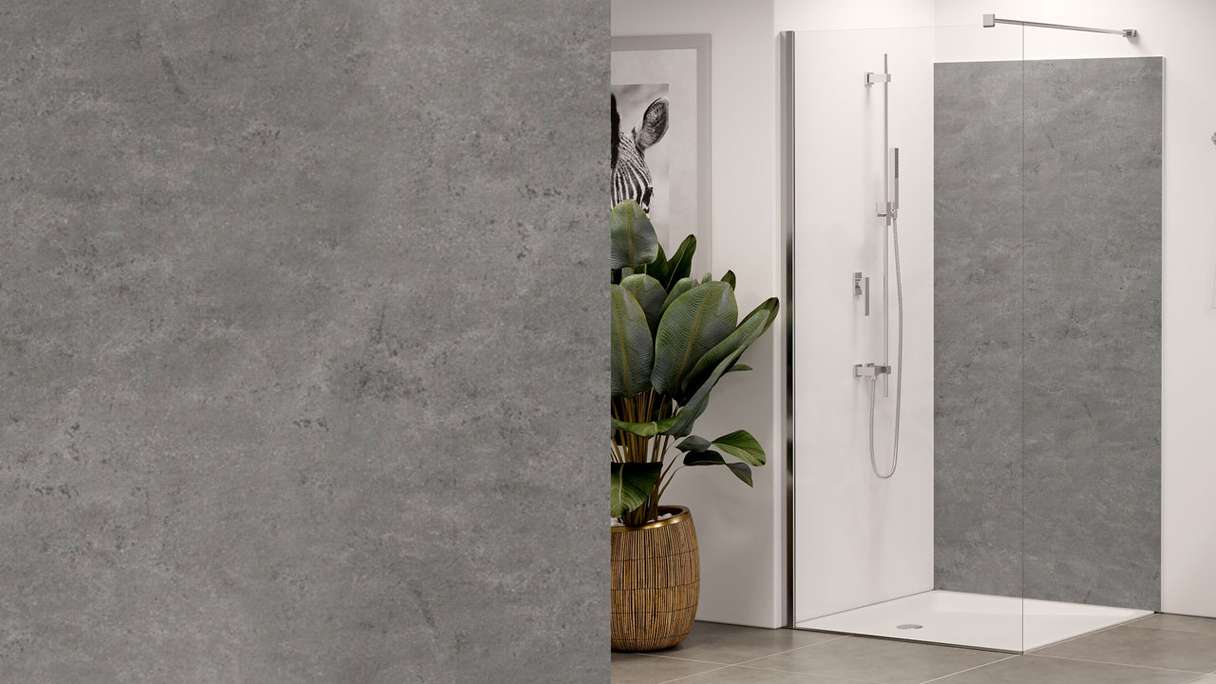

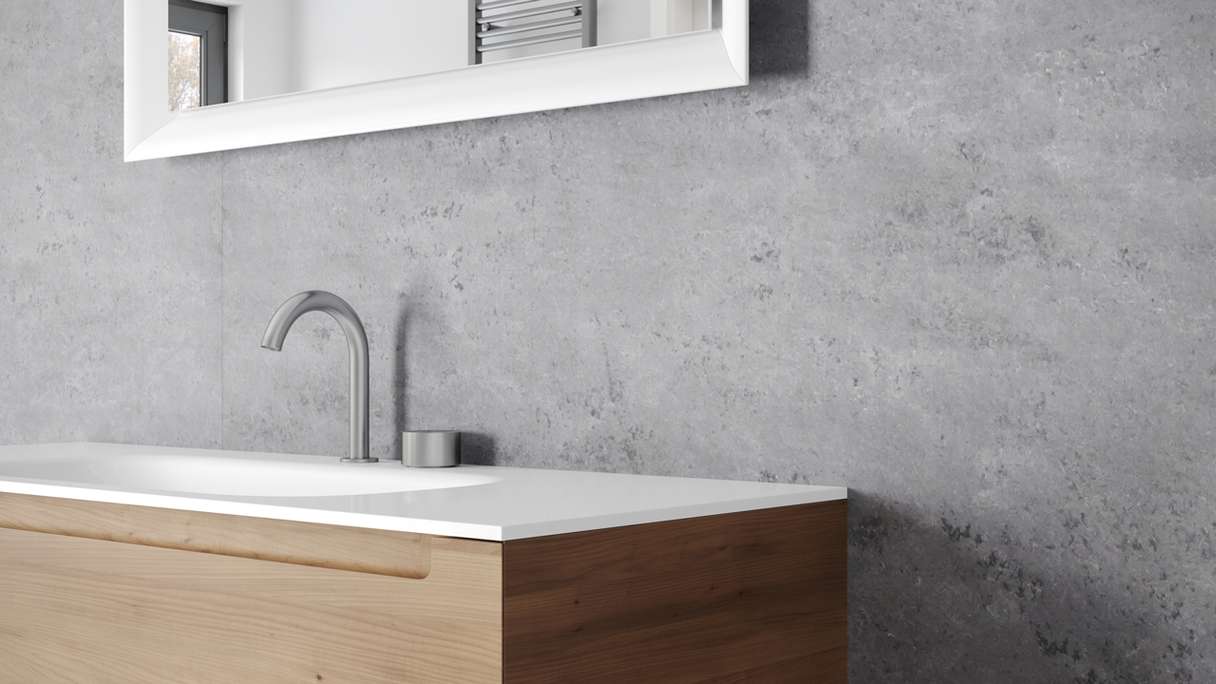

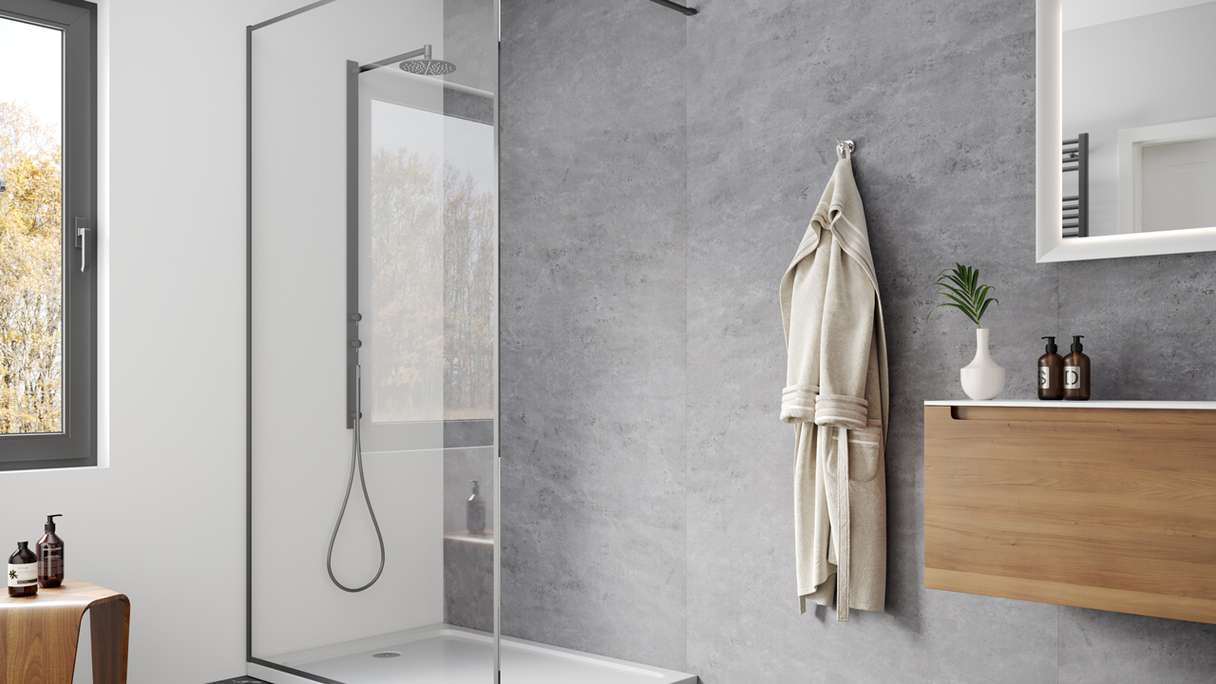

Planeo Wallboard - Concrete Dark Grey Matt - various formats

High-quality aluminium composite panel - waterproof & heat-resistant

Item no.: PWB-226_conf

High-quality aluminium composite panels for indoor use.
High resistance to heat (fire) & water.
Extremely scratch-resistant surface thanks to special UV lacquering.
Also suitable for kitchen & bathroom (kitchen back wall/shower).

Please note that the aluminium composite panels are only suitable for walls!

Offer request

Description

Technical data

DIY - Videos

Product description

High-quality aluminium composite panels for indoor use.
High resistance to heat (fire) & water.
Extremely scratch-resistant surface thanks to special UV lacquering.
Also suitable for kitchen & bathroom (kitchen back wall/shower).

Please note that the aluminium composite panels are only suitable for walls!

Planeo wallboard panels are particularly suitable for use in kitchens and bathrooms because of their everyday-friendly properties. They can also be used without problems in commercial areas such as restaurants, shopping centres, hotels or airports.

scratch-resistant
waterproof
heat-resistant
easy to clean

To ensure a clean installation, the subfloor should be clean, even, free of grease & dust. Please follow the video instructions to avoid installation errors.

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: PWB-226_conf

high-quality
scratch-resistant
waterproof
heat-resistant
easy to clean

Technical data

item no.	PWB-226_conf
Installation type	glue
Manufacturer	planeo
Type	Aluminum boards
EAN	4062212156414
Piece per package	1
Collection	Wallboard
suitable for	Shower, Bath, Kitchen, Bedroom & living room, Hallway & Corridor
Look	Stone effect
Special features	Suitable for humid rooms, Seamless, XL Size
Range of application	Residential
Material	Aluminium composite
Thickness in mm	3
Shipping group	XL
Package Content	1,50 m²

Print page

DIY step by step

Variant: DIY-Instruction

button

1. substrate preparation

The substrate must be clean, even, dry and free of separating agents before installation. Plan and tape the surface on which the aluminium composite panels are to be glued in advance.

Before laying, it is imperative that you follow the official laying instructions that are included in every package, otherwise any claim to warranty and guarantee will be invalidated!

button

2. sealing the shower

If you want to install the aluminium composite panels in the shower area, the substrate should be sealed beforehand. First seal the bathtub waterproofing and then the wall surfaces. Apply the Mapegum to the thick surface of the bathtub area and carefully press the seal on with a spatula to prevent air infiltration. Next, apply the corner sealing tape. Here, too, the Mapegum should be applied nice and tight with a roller. The corners and wall junctions are also sealed. Finally, roll the surfaces with the Mapegum. After the first coat, the tape should be removed immediately, as it cannot be removed without leaving residue after the drying time. As soon as the coating is dry, tape the surface again nicely and apply the Mapegum a second time over the entire surface. Again, remove the tape immediately.

button

3. attaching the wall cladding

As soon as the course of the panels has been decided, cut the panels to size with a cross-cut saw and sand the newly created cut edges. Take measurements and drill holes for the water connections. Before gluing, hold the panel against the wall and check that the measurements are correct. Now apply the adhesive horizontally to the wall at a distance of approx. 15 cm. Now remove the protective film from the back of the board and press the board down with a spirit level. This allows you to check at the same time whether the boards are level. Now the end profiles can be cut to size and placed against the board. Tile levelling wedges can be used for a flush transition between the individual composite panels.

ATTENTION: Please keep a distance of at least 1-2 mm to the floor.

button

4. seal & grout

When all tiles are in place and the adhesive has cured, carefully tap the wedges with a hammer. Tape the panels back down and seal the gaps between the panel and the shower tray (or other objects) with silicone. Fill the gaps with silicone and neaten them. Finally, grout the panel joints with grout. Wash off the excess grout with clear water as soon as the compound has dried.
